NANTONG ALLMAN INDUSTRY CO., LTD is a leading player in the machinery industry, specializing in electric chain hoists, wire rope hoists, electric winches, manual chain hoists, and beam trolleys.

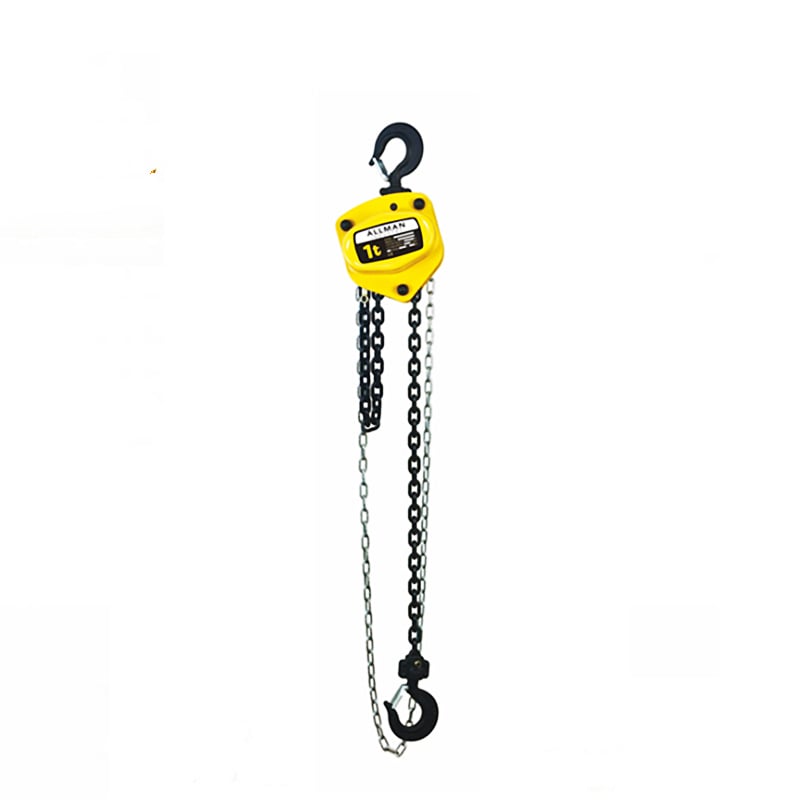

Introducing the HSZ-A Chain Block, the ultimate solution for your lifting needs in the machinery industry. This high-quality chain block hoist offers impressive features, exceptional performance, and unmatched reliability. Whether it's heavy-duty lifting or precise positioning, our chain block excels in various applications. With its robust construction and smooth operation, this hoist ensures maximum safety and efficiency. Gain a competitive edge with our HSZ-A Chain Block, delivering superior functionality, reliability, and unmatched value.
| model: | HSZ-A | |||||||||
| Capacity (ton): | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 15 | 20 | |
| Standard Lifting Height(m): | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Running Test Load (ton): | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | 22.5 | 30 | |
| Load Chain Dia.(mm): | Columns | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 6 | 8 |
| Dia | 5 | 6 | 7.1 | 8 | 7.1 | 10 | 10 | 10 | 10 | |
| Effort to Required to Lift Max.(n): |
231 |
309 | 320 | 320 | 360 | 414 | 420 | 430 | 420*2 | |
| Net Weight(kg): | 7 | 10.5 | 17 | 18 | 22 | 40 | 70 | 125 | 162 | |
