    NANTONG ALLMAN INDUSTRY CO., LTD is a leading player in the machinery industry, specializing in electric chain hoists, wire rope hoists, electric winches, manual chain hoists, and beam trolleys.

    Heavy Duty Electric Winch

    Types: AMW-S Series, AMW-E Series and AMK

    Capacity: 500kg- 12.5Ton

    Wire Rope Length: By requirements

    ALLMAN Heavu Duty Electric Winch

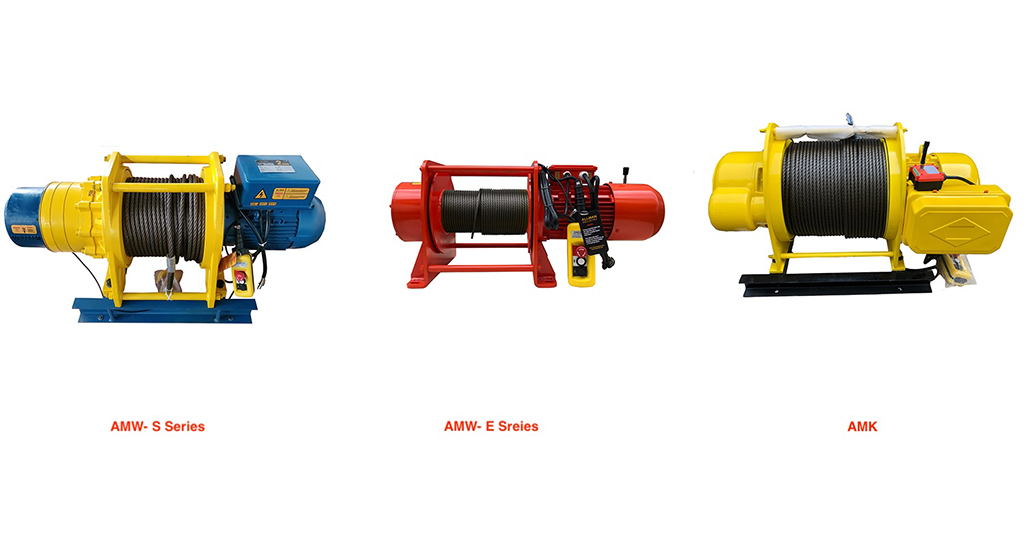

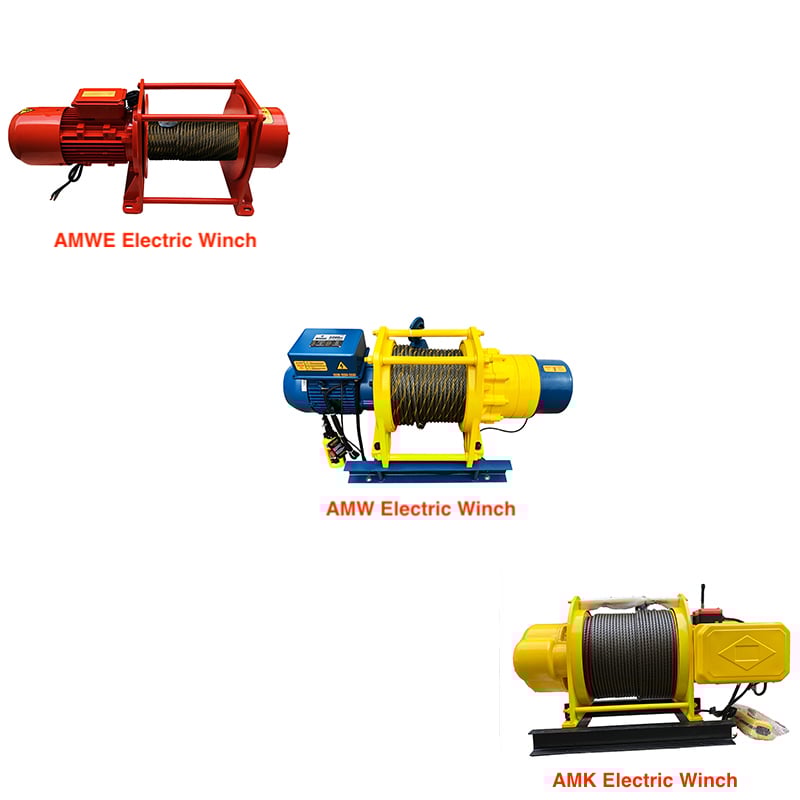

    Different types of the heavy duty winch:

    Heavy Duty Electric Winch

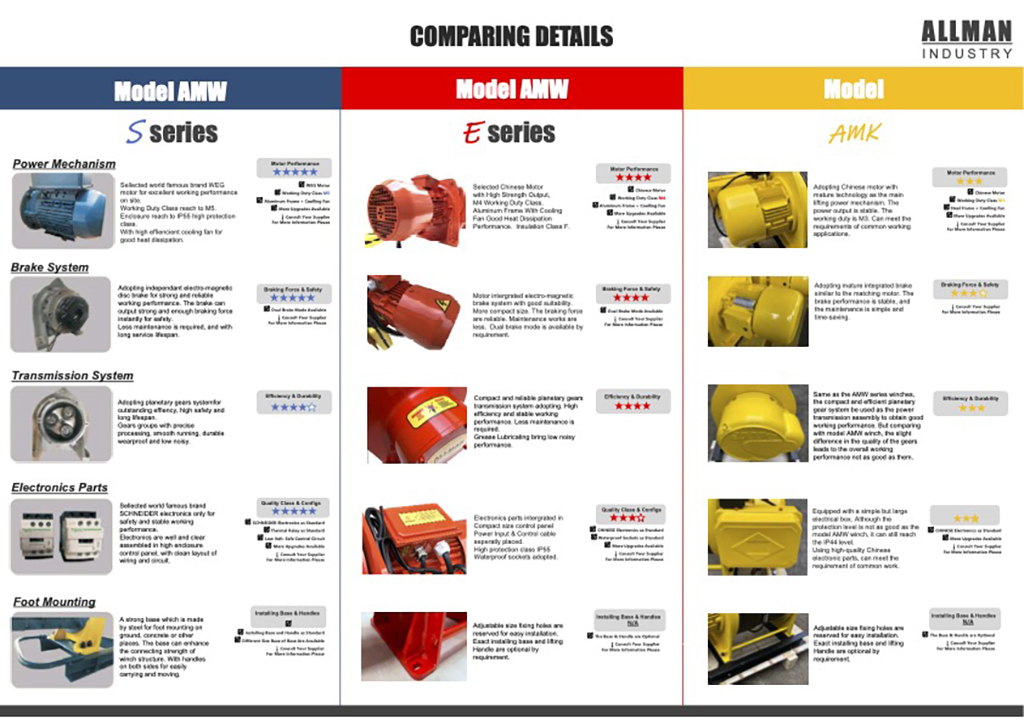

    Differences between the three series winch

    Heavy Duty Electric Winch

    Technical Date of three series winch:

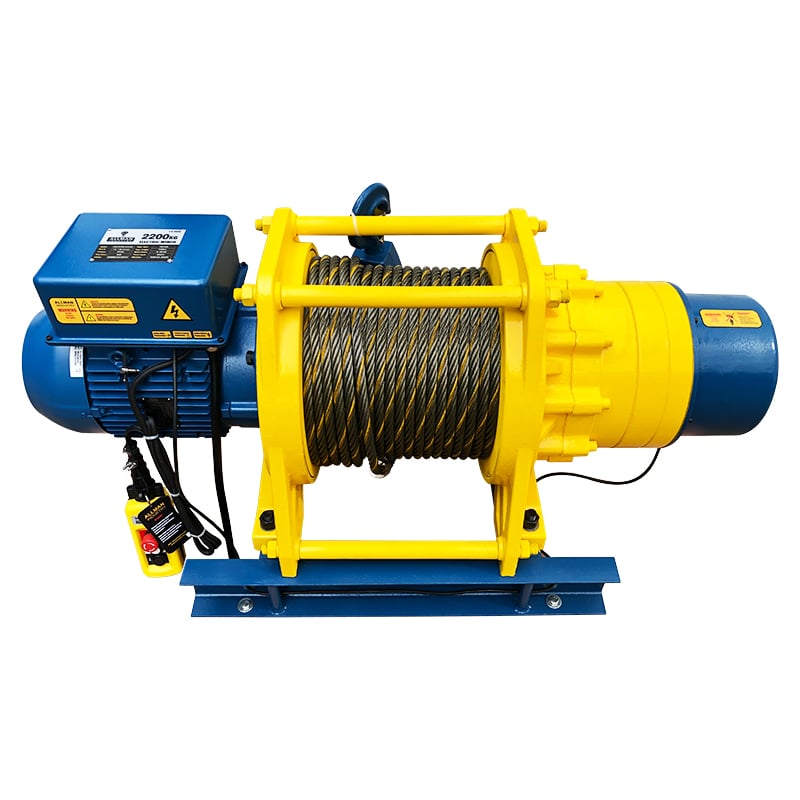

    AMW-S Series Electric Winch

    Model

    Rated capacity(Ton)

    Rope Length(m)

    Working Speed(m/min)

    Motor Power(Kw/hp)

    Rope Diameter(mm)

    Power Supply

    (volt.freq.ph)

    AMW-S 500-M

    0.5

    ≦80

    9~14

    1.5KW(2.0hp)

    9

    220V/380V/440V, 50/60Hz /3Ph

    AMW-S 500-

    L

    0.5

    81~105

    9~14

    1.5KW(2.0hp)

    9

    AMW-S 750-M

    0.75

    ≦80

    9~14

    2.2KW(3.0hp)

    10

    AMW-S 750-M

    0.75

    81~150

    9~14

    2.2KW(3.0hp)

    10

    AMW-S 1000-M

    1

    ≦80

    13～19

    3.0KW(4.1hp)

    11

    AWM-S 1000-L

    1

    81~150

    13～19

    3.0KW(4.1hp)

    11

    AMW-S 1600-M

    1.6

    ≦80

    13～19

    4.0KW(5.4hp)

    13

    AMW-S 1600-L

    1.6

    81~150

    13～19

    4.0KW(5.4hp)

    13

    AMW-S

    2200-M

    2.2

    ≦100

    8～14

    5.5KW(7.5hp)

    16

    AMW-S 2200-L

    2.2

    101～170

    8～14

    5.5KW(7.5hp)

    16

    AMW-S 2200-XL

    2.2

    171～250

    8～14

    5.5KW(7.5hp)

    16

    AMW-S 3200-M

    3.2

    ≦100

    8～14

    7.5KW(10.2hp)

    18

    AMW-S 3200-L

    3.2

    101～200

    8～14

    7.5KW(10.2hp)

    18

    AMW-S 3600-M

    3.6

    ≦100

    8～14

    9.2KW(12.5hp)

    18

    AMW-S 3600-L

    3.6

    101～200

    8～14

    9.2KW(12.5hp)

    18

    AMW-S 5000-M

    5

    ≦200

    9~13

    15KW(20.4hp)

    22

    AMW-S 5000-L

    5

    201~350

    9~13

    15KW(20.4hp)

    22

    AMW-S 8000-M

    8

    ≦170

    9~13

    18.5KW(25.2hp)

    26

    AMW-S 8000-L

    8

    171~300

    9~13

    18.5KW(25.2hp)

    26

    AMW-S

    10000-M

    10

    ≦250

    10～13

    22Kw(29.9hp)

    30

    AMW- S

    10000-L

    10

    251～430

    10～13

    22Kw(29.9hp)

    30

    AMW-S

    12500-M

    12.5

    ≦250

    10~13

    22Kw(29.9hp)

    30

    AMW-S

    12500-L

    12.5

    251~430

    10~13

    22Kw(29.9hp)

    30

    AMW-S

    16000-M

    16

    ≦350

    8～11

    45Kw(61.2hp)

    38

    AMW-S

    20000-M

    20

    ≦350

    8～11

    45Kw(61.2hp)

    38

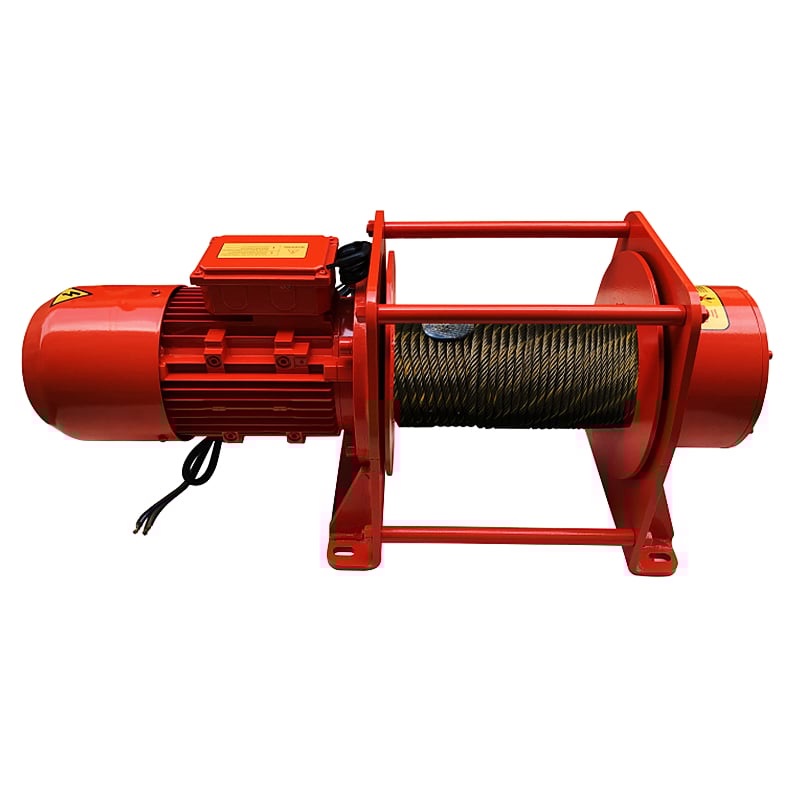

    AMW-E Series Electric Winch

    Model

    Rated Capacity

    (Ton)

    Rope Length

    (m)

    Working Speed

    (m/min)

    Motor Power

    (Kw/hp)

    Rope

    Diameter

    (mm)

    Power Supply

    AMW-E500-M

    0.5

    ≦100

    10～14

    1.5kw(2.0hp)

    7

    220V/380V/

    440V,

    50/60Hz, 3Ph

    AMW

    E500-L

    0.5

    101～200

    10～14

    1.5kw(2.0hp)

    7

    AMW-E1000-M

    1

    ≦100

    10～14

    3.0kw(4.1hp)

    10

    AMW-E1000-L

    1

    101～200

    10～14

    3.0kw(4.1hp)

    10

    AMW-E2000-M

    2

    ≦100

    7～13

    5.5kw(7.5hp)

    13

    AMW-E2000-L

    2

    101～200

    7～13

    5.5kw(7.5hp)

    13

    AMW-E3000-M

    3

    ≦100

    7～13

    7.5kw(10.2hp)

    16

    AMW-E3000-L

    3

    101～200

    7～13

    7.5kw(10.2hp)

    16

    AMW-E5000-M

    5

    ≦100

    9～16

    15.0kw(20.4hp)

    18

    AMW-E5000-L

    5

    101～200

    9～16

    15.0kw(20.4hp)

    18

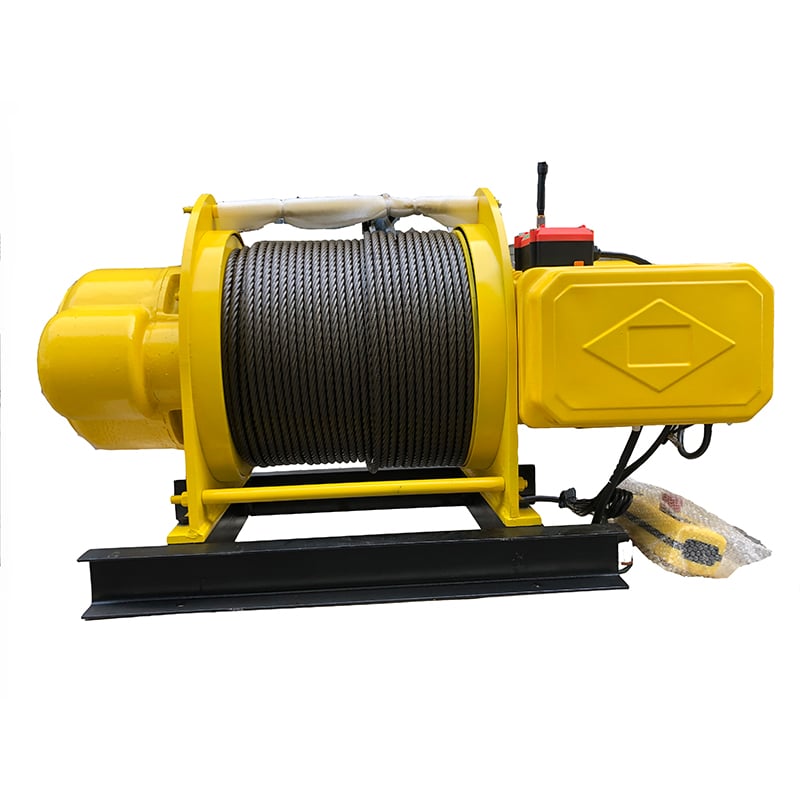

    AMK Electric Winch

    Model

    		 Rope Reeving Rated Capacity(Kg) Working Speed(m/min) Rope Length(m)

    Rope

    Diameter(mm)

    		 Motor Power(Kw/hp)

    Power Supply

    AMK

    500/1000

    		 Single 500kg 16 0~100( by requirments) 9mm 1.5kw(2.0hp)

    AC 220V / 380V / 440V

    3Ph
    Double 1000kg 8

    AMK

    1000/2000

    		 Single 1000kg 16 11mm 3.0kw(4.1hp)
    Double 2000kg 8

    AMK

    1500/3000

    		 Single 1500kg 16 13mm 4.5kw(6.1hp)
    Double 3000kg 8

    AMK

    2500/5000

    		 Single 2500kg 16 15mm 7.5kw(10.2hp)
    Double 5000kg 8

    AMK

    5000/10000

    		 Single 5000kg 16 22mm 13kw(17.7hp)
    Double 10000kg 8

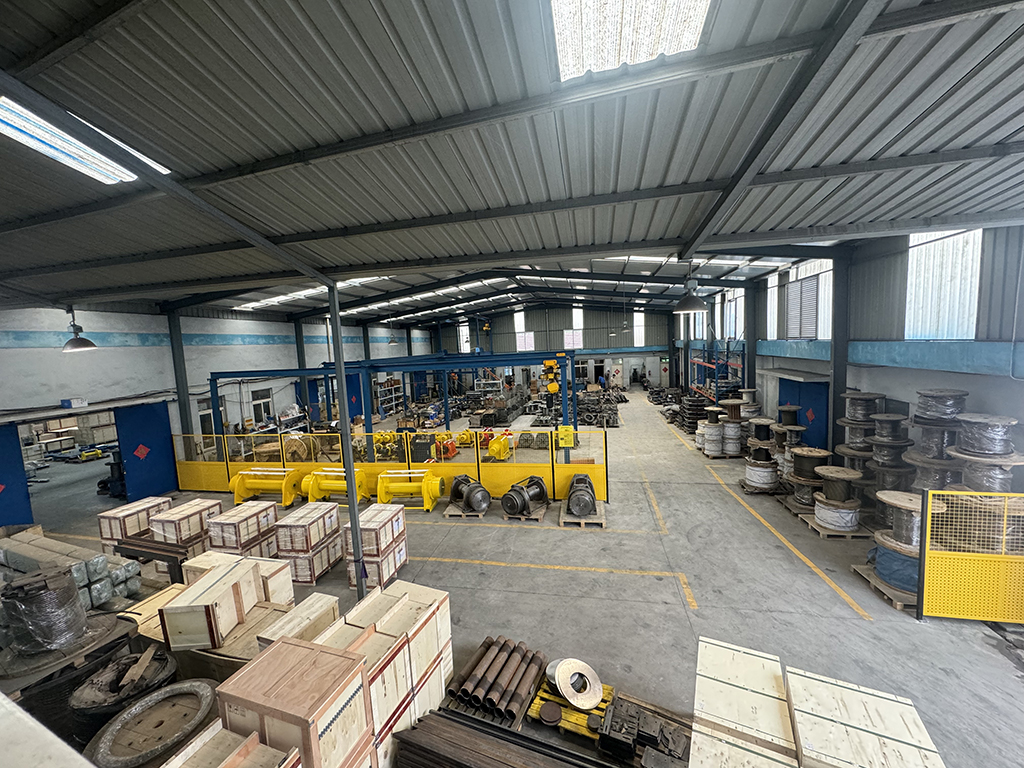

      Winch Factory shown

      Heavy Duty Electric Winch

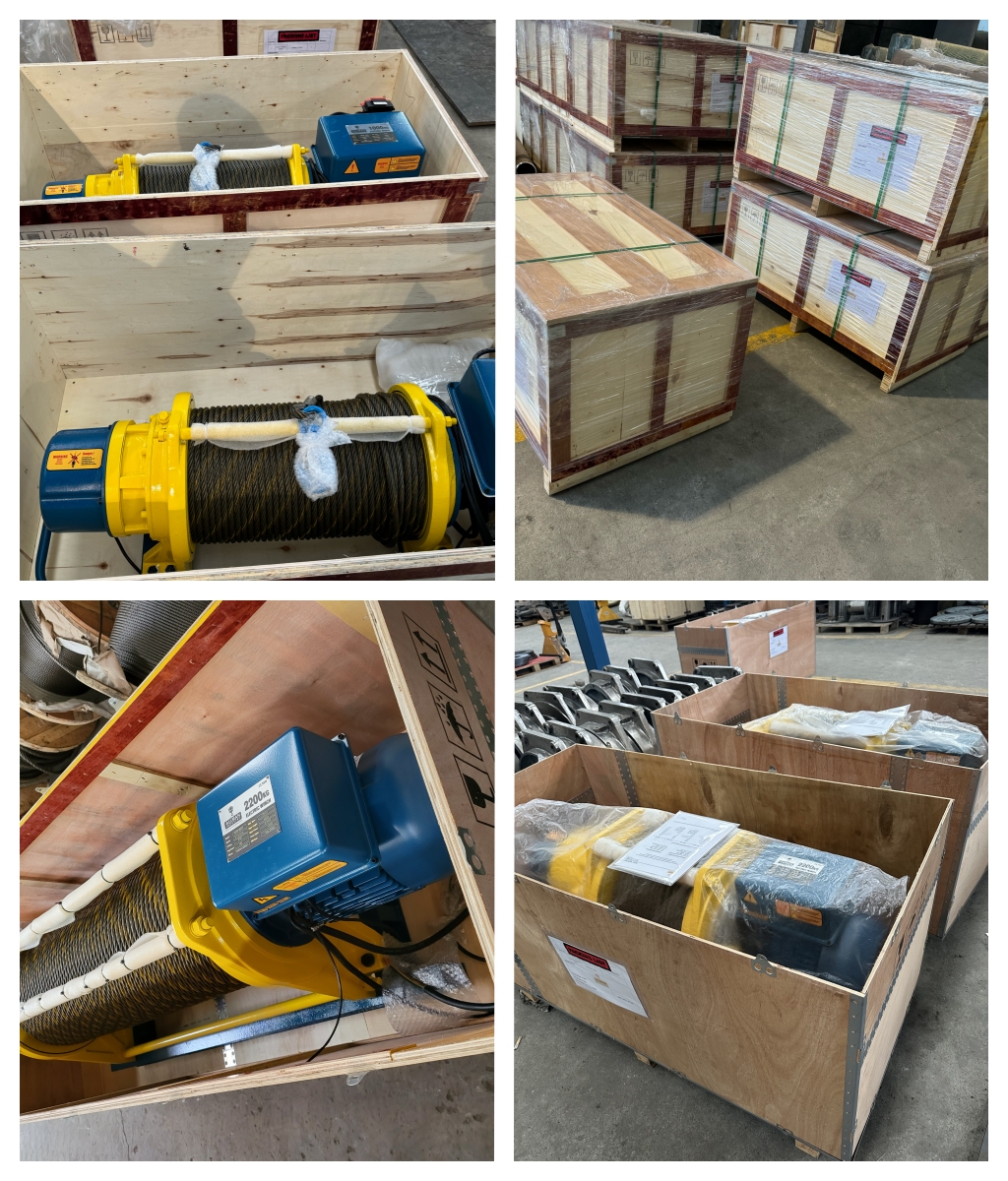

      Package Method of the Electric Winch

      Heavy Duty Electric Winch

      Introduction of the Electric Winch Supplier--ALLMAN:

      ALLMAN has evolved itself into a specialist in the field of hoisting and lifting equipment. With over 10 years rich experience, we are capable of delivering an extensive range of material handling equipment and lifting products. Whether it comes to construction, manufacturing, mining, transportation, railway, electric power, wind power, theater, offshore, or ship building, you name it, we provide it.

      Safety, quality and professionalism are the three key words to ALLMAN hoisting and lifting equipment. Safety is one of the main concerns in the world where accidents could be easily encountered. Housing and lifting jobs is no stranger to risks. Safety can only be guaranteed by quality as well as professionalism. Our expertise in hoisting and lifting equipment and our long-acquired experience have helped us to become one of the most professional parties in the field of work.
      With ALLMAN you can rest assured of obtaining the best value for your money. With our efficient and well-controlled process, we safeguard continuity in our product quality. European norms and standards are complied with. We maintain a substantially great stock level that is constantly monitored. This guarantees one of the fastest delivery times among our peers.
      ALLMAN hoisting and lifting equipment is one of the most important and stable players in the market. We are well known to offer products of trustworthy and solid quality at a competitive price. In addition, we have build up an extensive distributor network worldwide over the years. With this network, we ensure fast delivery and best available after sales support to our customers.

      Customer's Feedback of the Electric Winch:

      Heavy Duty Electric Winch

      Certifications of the Heavy duty electric winch

      Heavy Duty Electric Winch

      ALLMAN Exhibition

      Heavy Duty Electric Winch

      FAQ

      1. What is your min order quantity?

         One unit of the electric winch is available.

      2. How can i choose the suitable electric winch?

         You can contact our sales and then them the usage of the winch you want, they will give you the profreeional suggestions.

      3. Are you a factory or a trading company?

          We are the factory. We produce the electric winch by ourself. If you have time, we invite you to come to visit our factory.

      4. Can you provide OEM or ODM service of the winch?

          Sure, we can provide it. You can choose your own logo, your own color and your own shipping mark if you want. But OEM service has certain quantity requirements.

      5. When can i get the price of the winches i am interetsed in?

          As usual we will quote you in 8 hours after receiving your inquiry.

      6. Do you provide sample ? Is it free?

          Yes, we can provide you the sample. But you need to pay for the smple first, and then we will refund you the money for the sample order in your bulk order.

      7. What is your term of payment?

          30% down payment before producing and 70% balance payment before shipping.

      8. Which payment from of the winch you can accept?

          TT, L/C and Paypal.

      9. What’s your term of the delivery?

         Our ordinary delivery term is FOB Shanghai. We also accept EXW, CFR, CIF, DDP, DDU etc. We’ll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.

      10. Which shipping way can you provide?

           We can provide shipping by Sea, By Air and By Express.
