NANTONG ALLMAN INDUSTRY CO., LTD is a leading player in the machinery industry, specializing in electric chain hoists, wire rope hoists, electric winches, manual chain hoists, and beam trolleys.

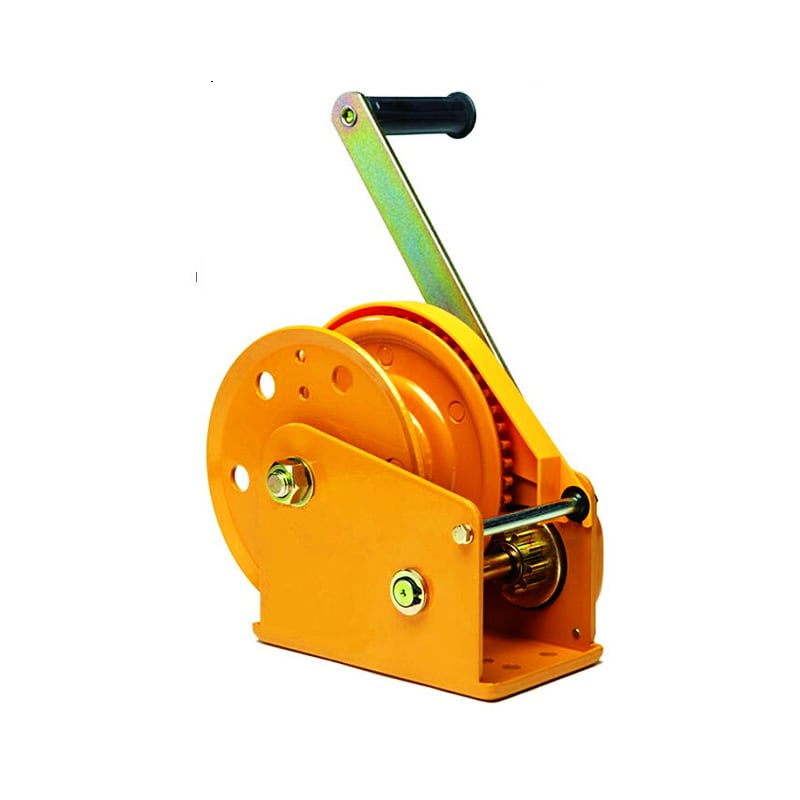

Introducing our powerful and versatile Hand Winch! Designed for the industry and trade in machinery, this reliable tool is a must-have for any lifting or pulling task. With exceptional features like robust construction and easy-to-use design, our Hand Winch allows you to effortlessly move heavy loads with precision and control. Its wide range of applications makes it ideal for various industries. Offering exceptional strength, reliability, and convenience, our Hand Winch is the ultimate solution for all your lifting needs. Get yours today and experience the difference!
| Model |
BHW- 800 |
BHW- 1200 |
BHW- 1800 |
BHW- 2600 |
| Lifting Capacity 1st rope layer(kg) | 180 | 270 | 410 | 600 |
| Pulling Capacity 1st rope layer(kg) | 370 | 545 | 820 | 1200 |
| Required Efforts 1st rope layer(kg) | 14.5 | 14 | 22 | 19 |
| Drum Diameter(mm) | 21 | 48 | 60 | 75 |
| Gear Ratio | 3.7:1 | 4.1:1 | 5:1 | 10:1 |
| Rope Diameter(mm) | 4 | 4 | 5 | 6 |
| Total Rope Capacity(kg) | 36 | 23 | 24 | 18 |
| Net Weight(kg) | 3 | 3.7 | 8.1 | 10.3 |
