    NANTONG ALLMAN INDUSTRY CO., LTD is a leading player in the machinery industry, specializing in electric chain hoists, wire rope hoists, electric winches, manual chain hoists, and beam trolleys.

    Features of ER2 Electric Chain Hoist

    • Compact body - lightweight
    • Smooth and ergonomic operation
    • Reliable safety
    • Enhanced durability
    • Easier maintenance
    • Environmentally friendly
    New Chain Hoist Manufacturers Product Comprehensive Upgardes

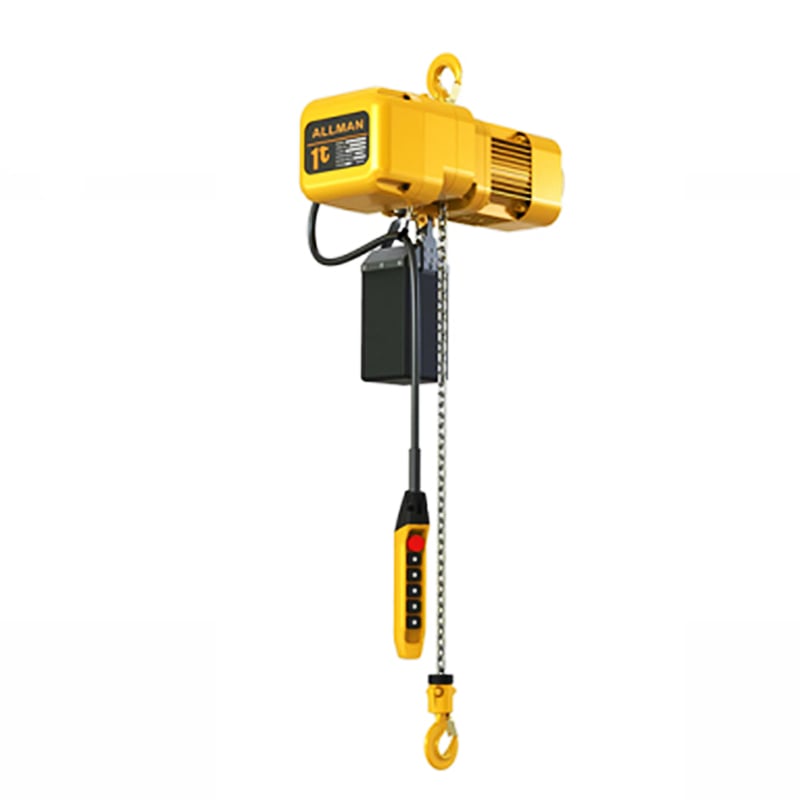

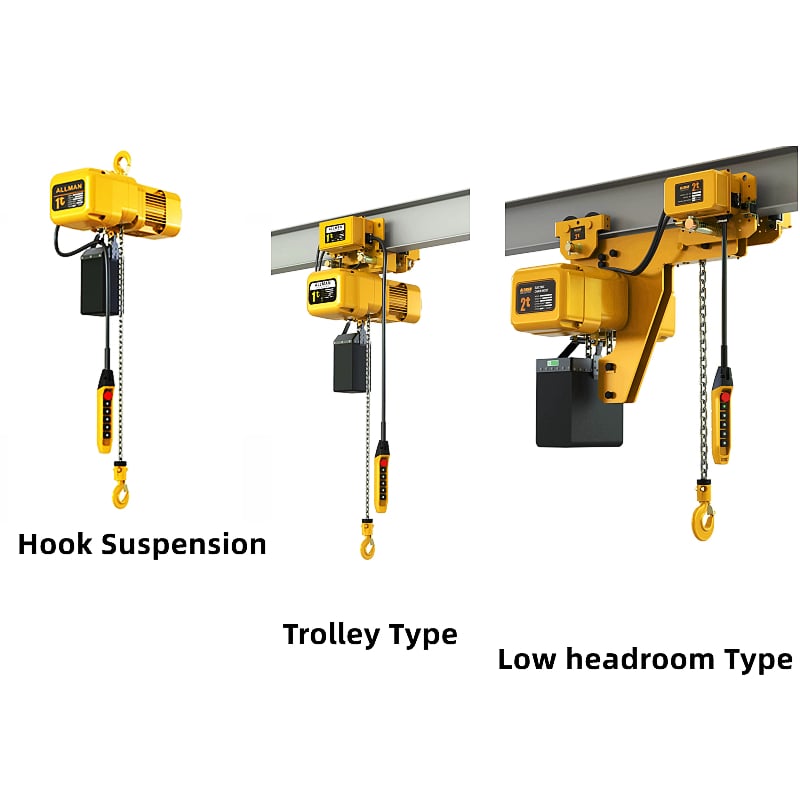

    ER2 Dual Speed Electric Chain Hoist With Hook Suspension

    Classfication

    M5

    Enhanced Duribility

    High Working Performance

    ER series new model electric chain hoist bring high working performance and Safety reliability,with long lifespan and less maintenance advantages

    With  Inverter

    Smooth，Transitional Speed Optional

    Flexible Working Application

    ER Series electric Chain Hoists adopt inverter for efficient operation,can provide smooth dual speed mode/variable speed mode for different working applications

    Clutch

    Overload protection Device

    Automatic Activation

    Safety Upgrade

    Reliable Safety Guarantee

    ER Series upgrade slipping clutch as standard overload protection configuration,can bring double reliable safety gurantees for users

    ER2 Dual Speed Electric Chain Hoist With Hook Suspension

    Features of ER2 Chain Hoist Manufacturers

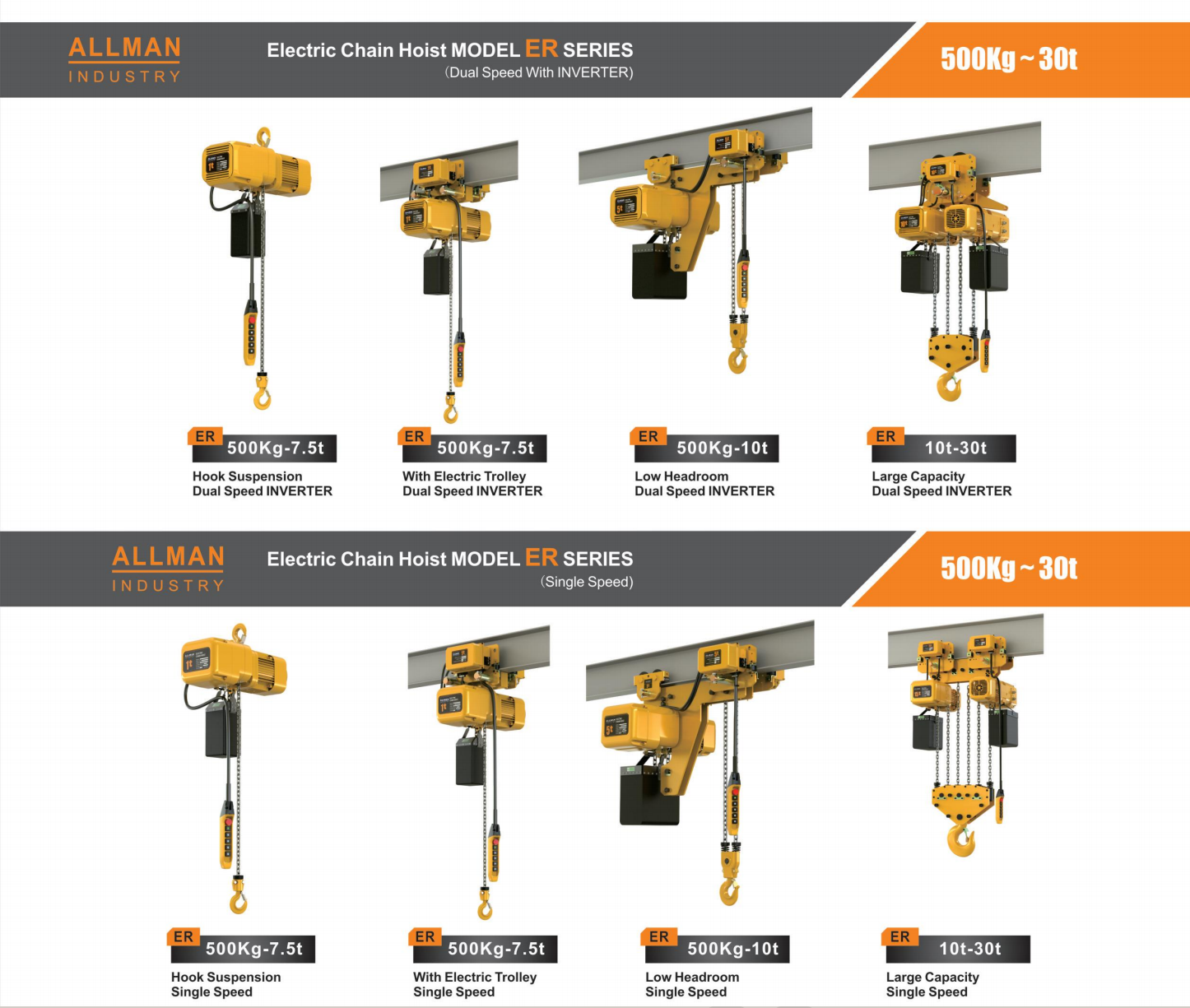

    • 500Kg ~ 30Ton
    • Dual Speed C ontrolled by Inverter
    • An upgraded Lifting & Travelling Mode
    • Vibration & Waving reduced Significantly
    • Smooth & Soft Movements for Start & Stop
    • High Accuration & Precision of Positioning
    • Lifting Speed Ratio Adjustable to 6:1
    • Travelling Speed Ratio Adjustable to 6:1

    ER2 Dual Speed Electric Chain Hoist With Hook SuspensionER2 Dual Speed Electric Chain Hoist With Hook SuspensionER2 Dual Speed Electric Chain Hoist With Hook Suspension

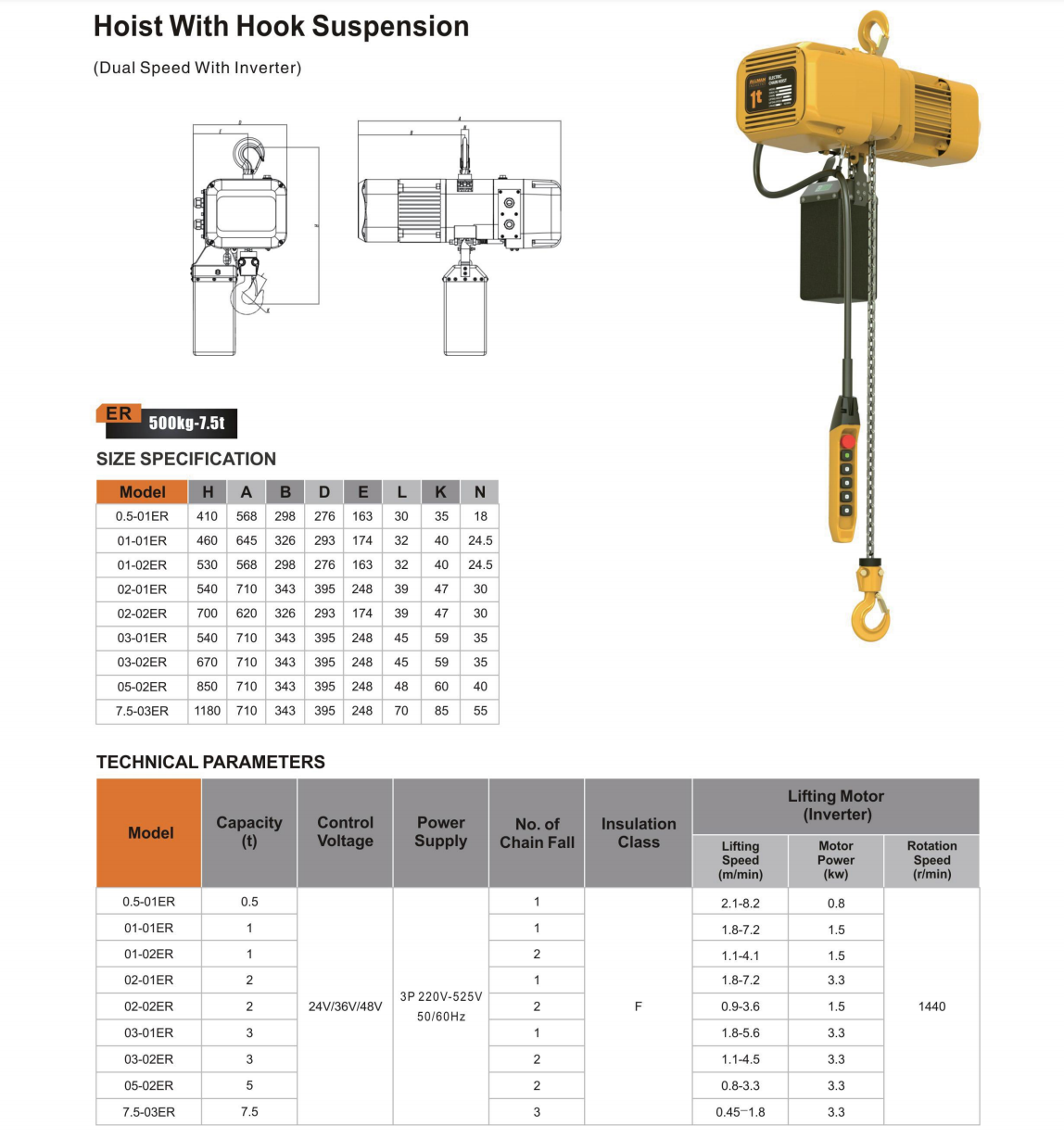

    Model

    AMEH

    01-01ER

    AMEH

    02-01ER

    AMEH

    02-02ER

    AMEH

    03-01ER

    Capacity (t)

    1

    2

    2

    3

    Lifting Speed (m/min)

    7.2

    (Single Mode)

    7.2

    (Single Mode)

    3.6

    (Single Mode)

    5.6

    (Single Mode)

    1.2~7.2

    (Inverter)

    1.2~7.2

    (Inverter)

    0.6~3.6

    (Inverter)

    0.93~5.6

    (Inverter)

    Travelling Speed (m/min)

    11 or 19 (Single Mode)

    2~11(Inverter) / 3~19(Inverter)

    Motor Power (Kw)

    1.5

    3.3

    1.5

    3.3

    Chain Dia. (mm)

    7.1

    10.0

    7.1

    11.2

    No. of Chain Fall

    1

    1

    2

    1

    Power Supply

    220V / 380V / 440V, 50/60Hz / 3Ph

    Control Voltage

    24V /36V / 48V

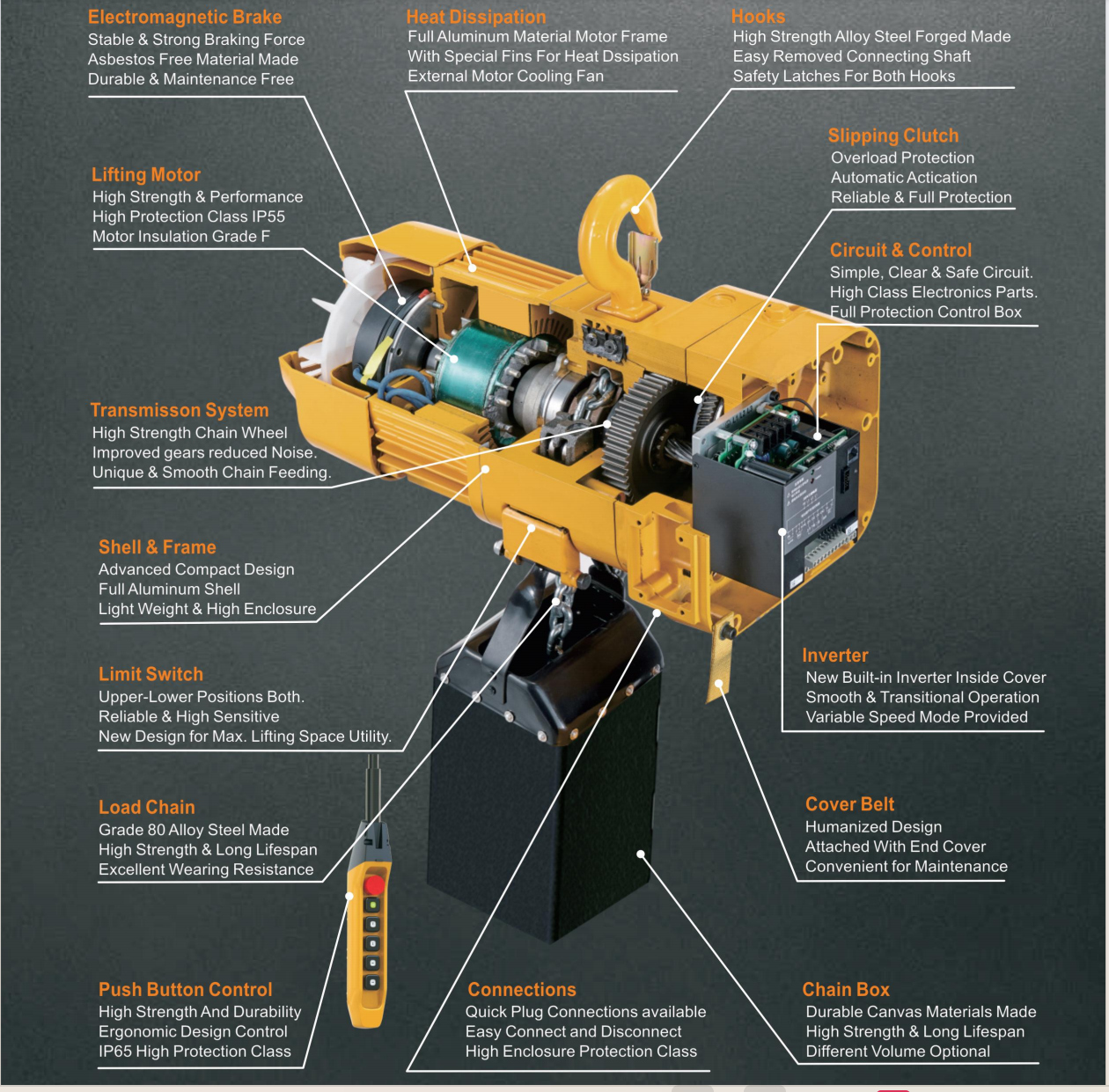

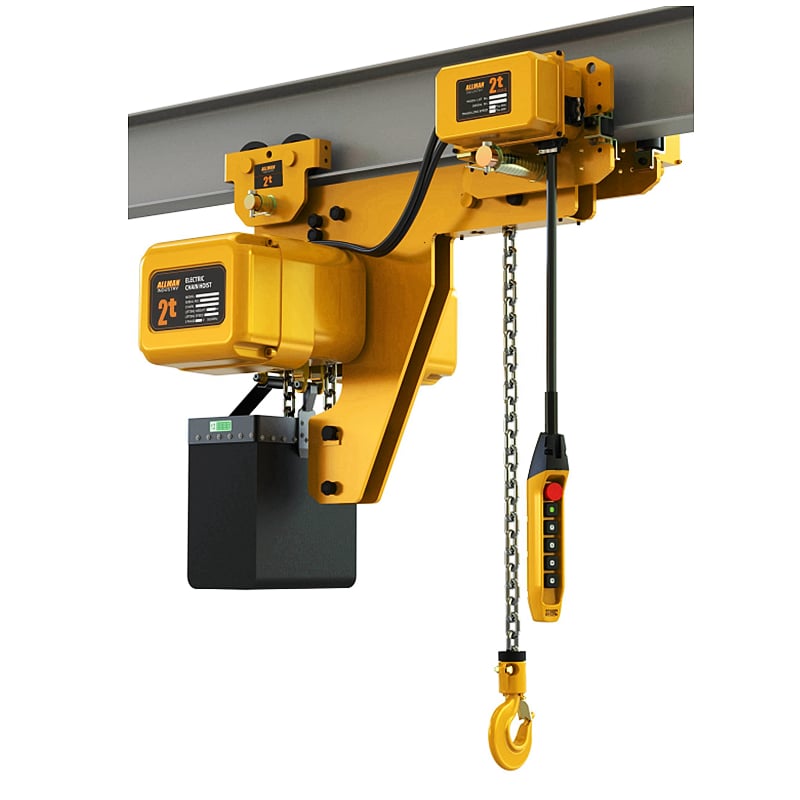

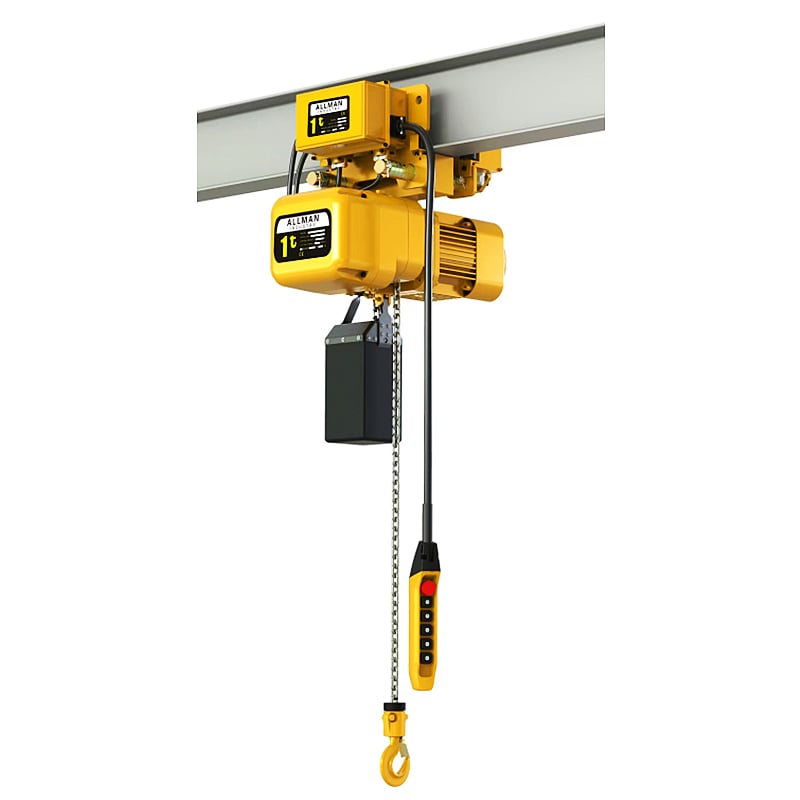

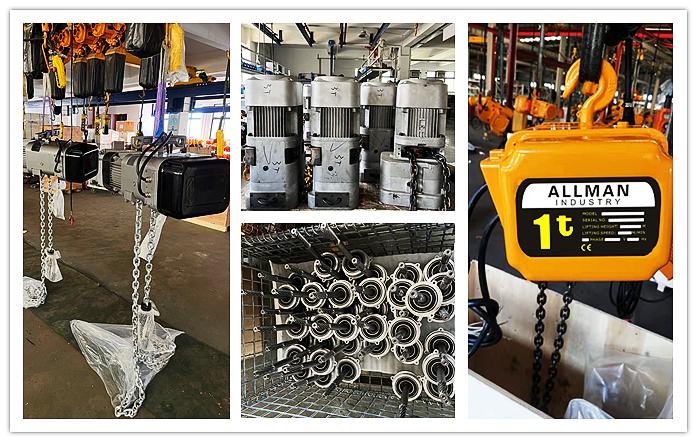

    Detailed Pictures of Chain Hoist Suppliers

    ER2 Dual Speed Electric Chain Hoist With Hook Suspension

    ER2 Dual Speed Electric Chain Hoist With Hook Suspension
