NANTONG ALLMAN INDUSTRY CO., LTD is a leading player in the machinery industry, specializing in electric chain hoists, wire rope hoists, electric winches, manual chain hoists, and beam trolleys.

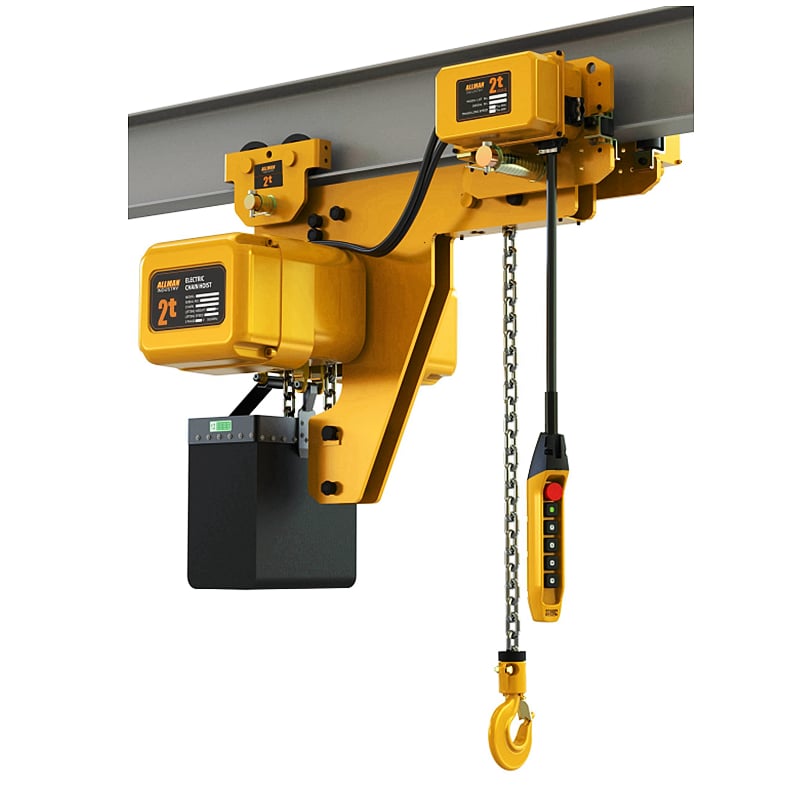

Introducing the ER Electric Chain Hoist (Low Headroom Type) – the best electric chain hoist in the market! This exceptional product is designed to cater to all your lifting needs with its unbeatable features. With a low headroom design, it fits perfectly in confined spaces. Its versatility allows for various applications, ensuring maximum efficiency. Equipped with outstanding functions, it guarantees smooth and safe operations. Enjoy the advantage of its robust build and reliable performance. Elevate your lifting experience with our ER Electric Chain Hoist!
|
Model |
AMEH 01-01ER |
AMEH 02-01ER |
AMEH 02-02ER |
AMEH 03-01ER |
|
Capacity (t) |
1 |
2 |
2 |
3 |
|
Lifting Speed (m/min) |
7.2 (Single Mode) |
7.2 (Single Mode) |
3.6 (Single Mode) |
5.6 (Single Mode) |
|
1.2~7.2 (Inverter) |
1.2~7.2 (Inverter) |
0.6~3.6 (Inverter) |
0.93~5.6 (Inverter) |
|
|
Travelling Speed (m/min) |
11 or 19 (Single Mode) |
|||
|
2~11(Inverter) / 3~19(Inverter) |
||||
|
Motor Power (Kw) |
1.5 |
3.3 |
1.5 |
3.3 |
|
Chain Dia. (mm) |
7.1 |
10.0 |
7.1 |
11.2 |
|
No. of Chain Fall |
1 |
1 |
2 |
1 |
|
Power Supply |
220V / 380V / 440V, 50/60Hz / 3Ph |
|||
|
Control Voltage |
24V /36V / 48V |
|||
