NANTONG ALLMAN INDUSTRY CO., LTD is a leading player in the machinery industry, specializing in electric chain hoists, wire rope hoists, electric winches, manual chain hoists, and beam trolleys.

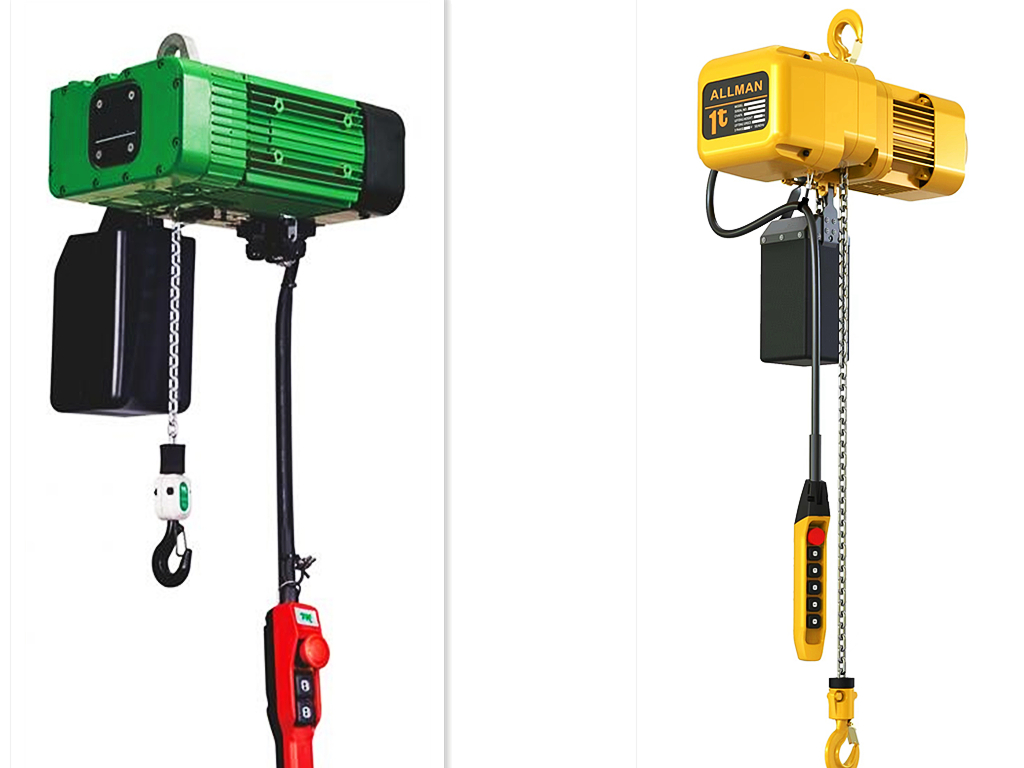

Product Name: ALLMAN ALL Series Electric Chain Hoist
( AMEH Standard Series /ER2 and S Series Dual Speed With Inverter.)
Capacity:
AMEH /AMER2 (500kg-30ton)
AMS(500KG-5Ton)

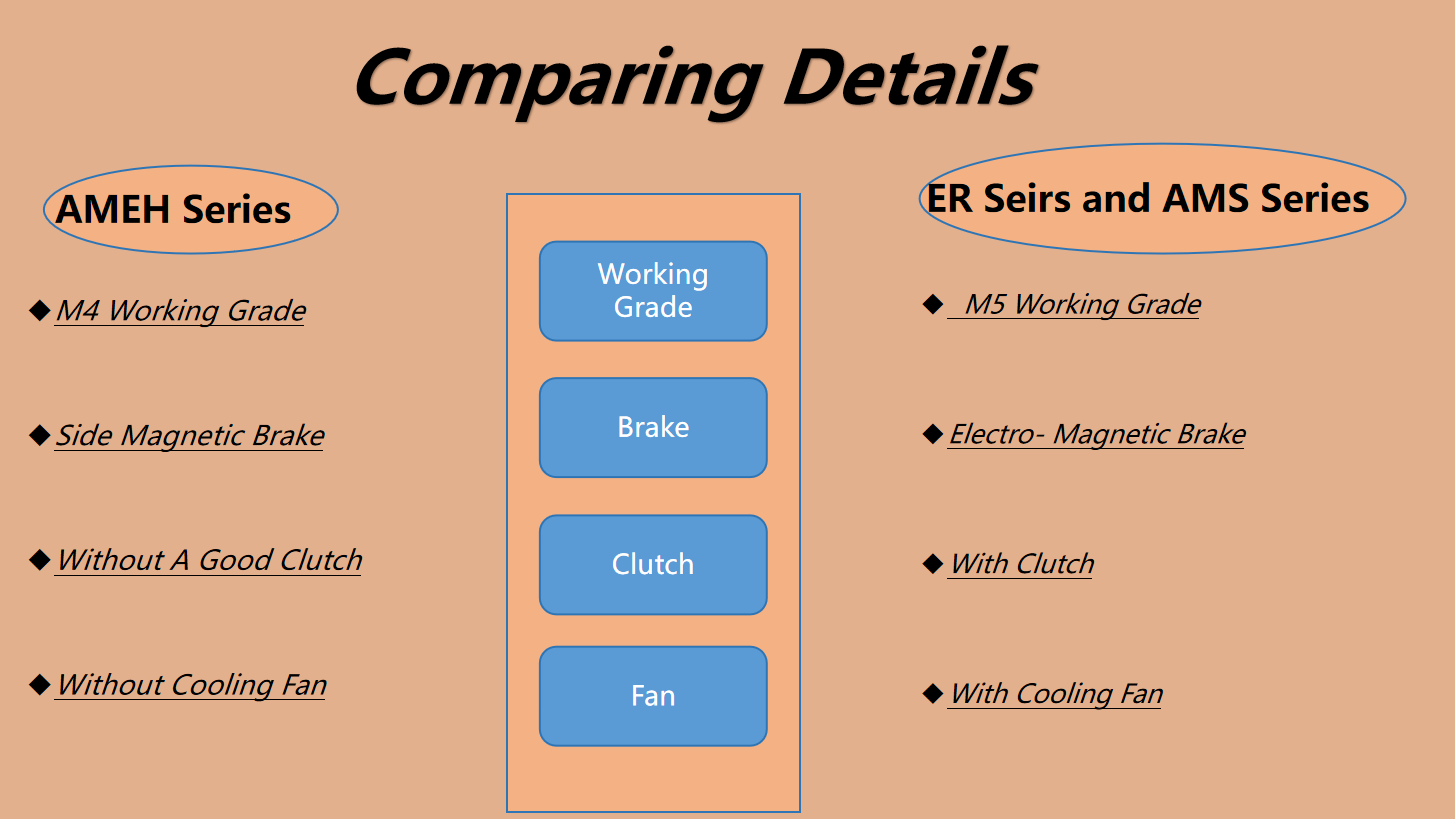

Classification:
AMEH-M4
ER2 and S Series-M5
Brake System:
AMEH- Side-magnetic brake
ER2 and S Series- Electro-magnetic brake
Description of the Electric Chain Hoist

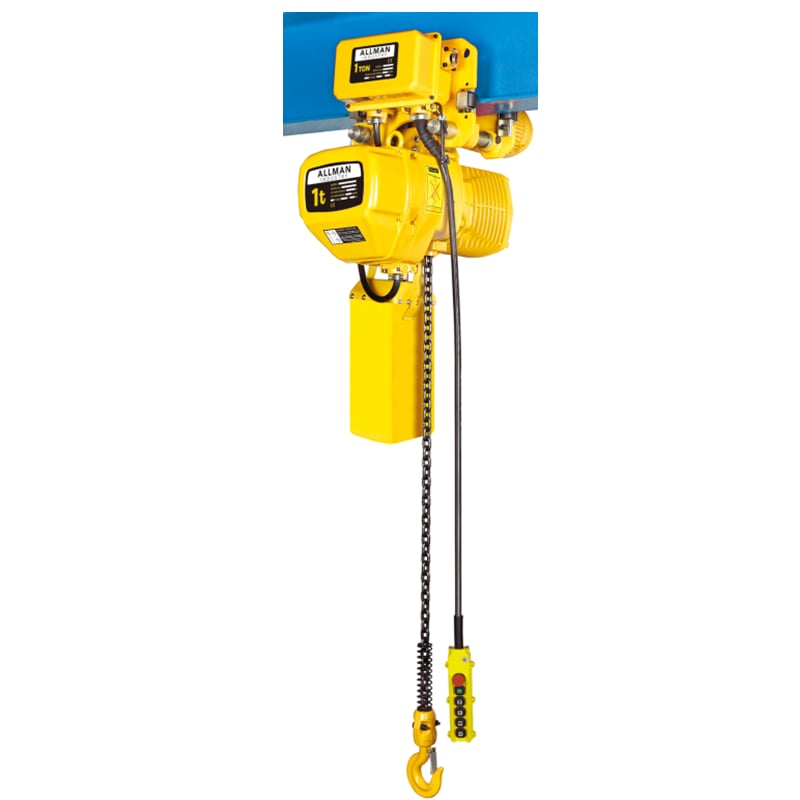

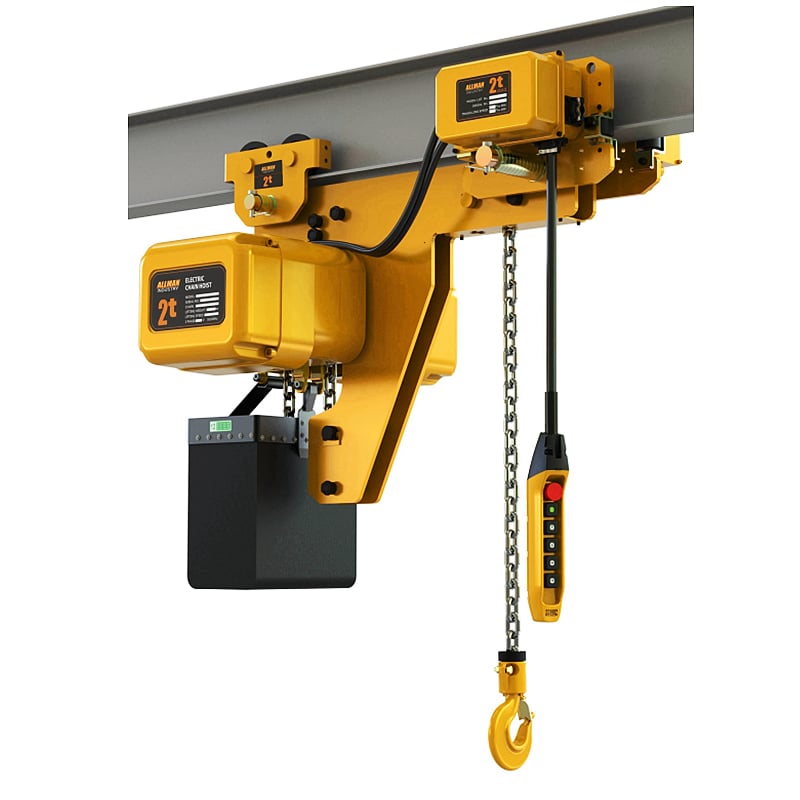

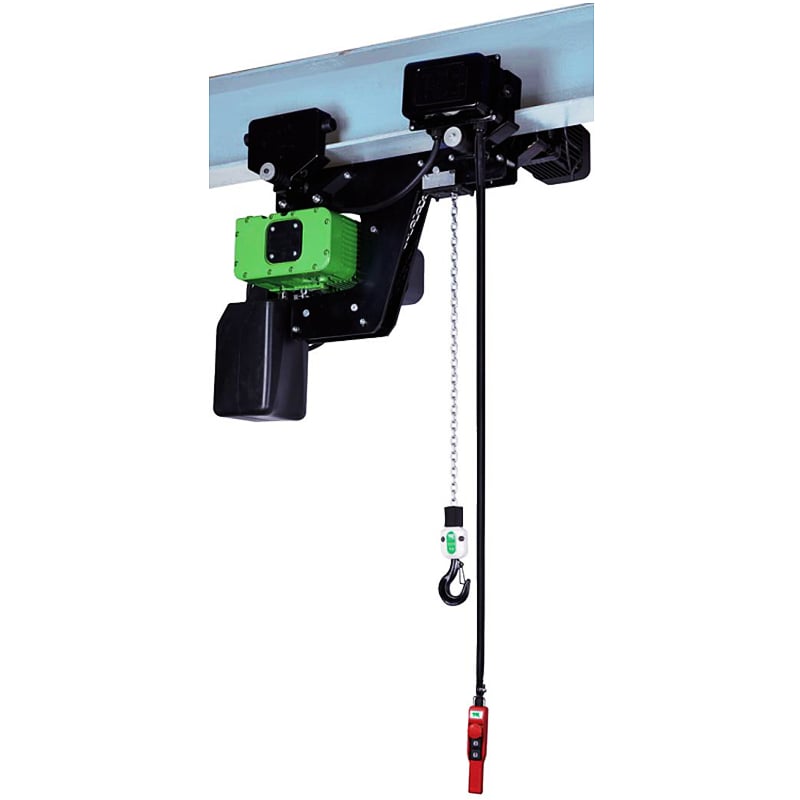

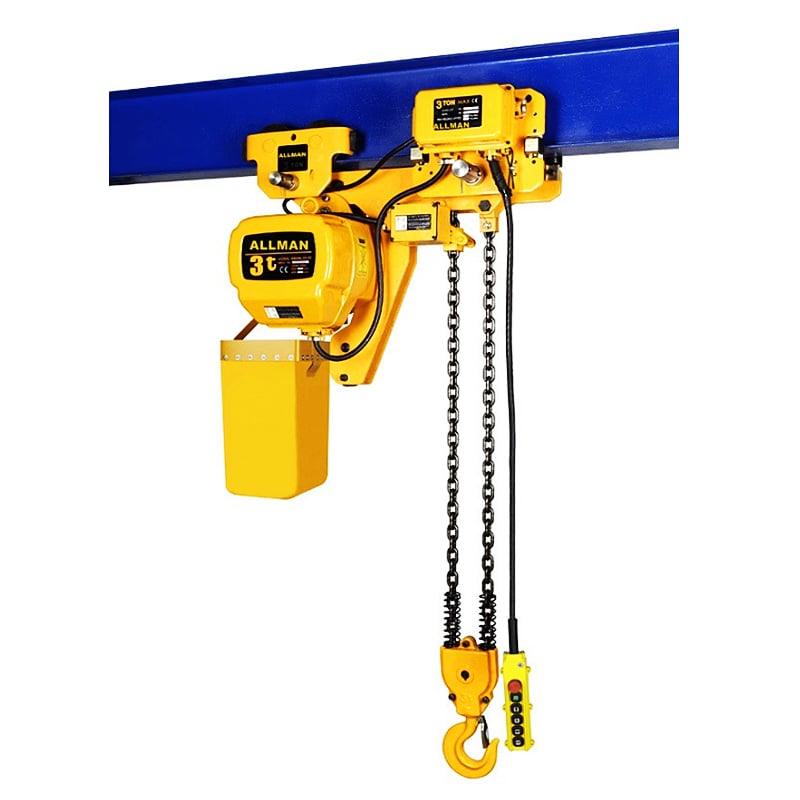

ALLMAN electrical chain hoist is equipped with qualified components and produced by mature technology. Briefly 3 kinds optional: Hook suspension type electric chain hoist ,Electric trolley type chain hoist and low headroom electric chain hoist . Different capacity,different look.Electric chain hoists can be used in many places, such as factory, warehouse, supermarket, logistics park, construction site ans so on. Hoists can help people to finish heavy work faster and easier.

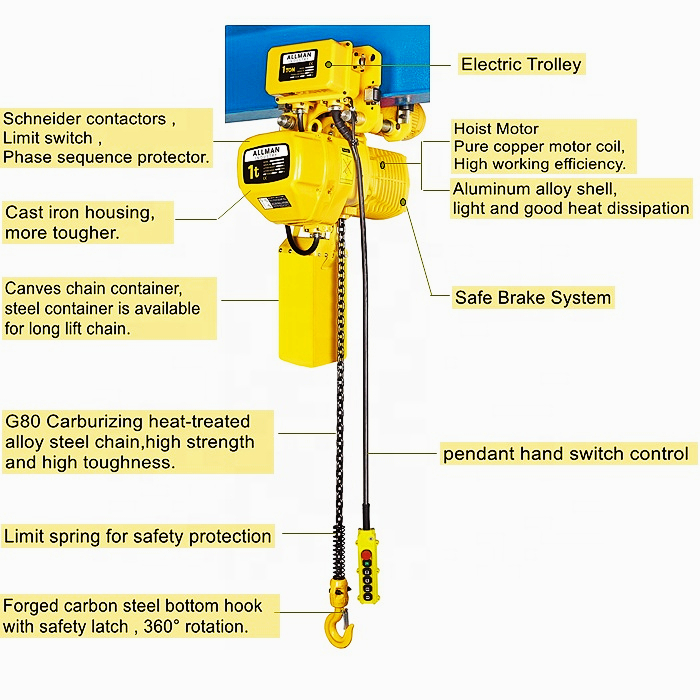

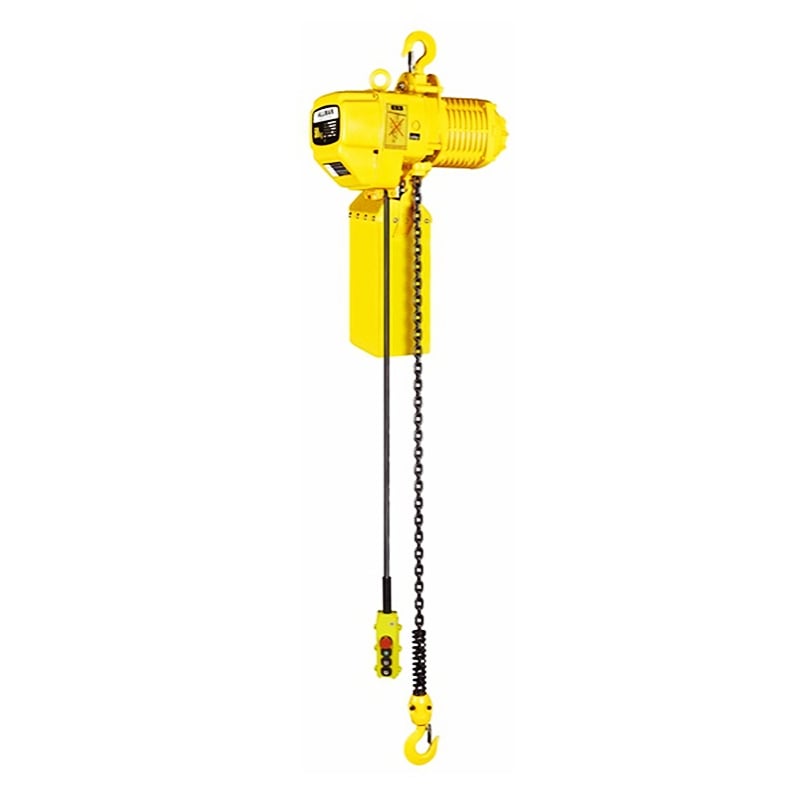

Features of AMEH Electric Chain Hoist
Technical data of the AMEH Electrical Chain Hoist
|
Model |
AMEH 0.5-01S |
ANEH 01-01S |
AMEH 02-01S |
AMEH 03-01S |
AMEH 05-02S |
AMEH 7.5-03S |
|
Load Capacity (Ton) |
0.5 |
1 |
2 |
3 |
5 |
7.5 |
|
Lifting Speed (m/min) |
7.2 |
6.6 |
6.6 |
5.4 |
2.7 |
1.8 |
|
Motor Power |
0.8kw |
1.5kw |
3.0kw |
3.0kw |
3.0kw |
3.0kw |
|
Rotation Speed |
1440 r/min |
|||||
|
Insulation Grade |
F |
|||||

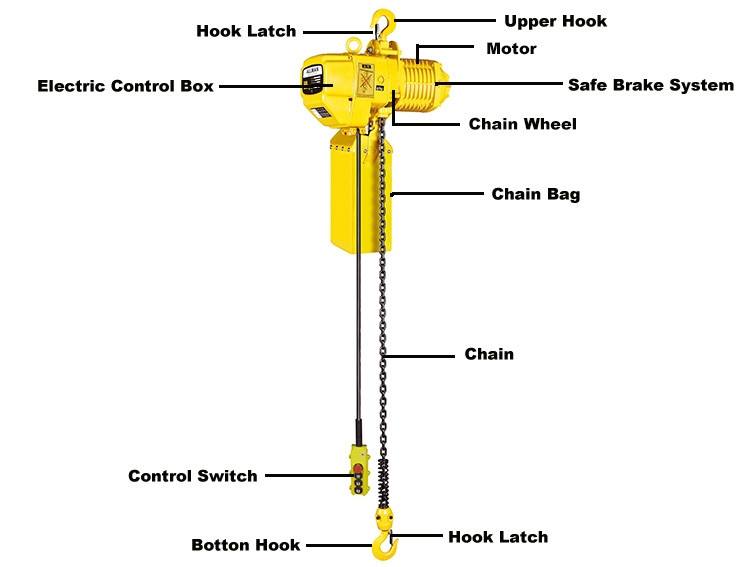

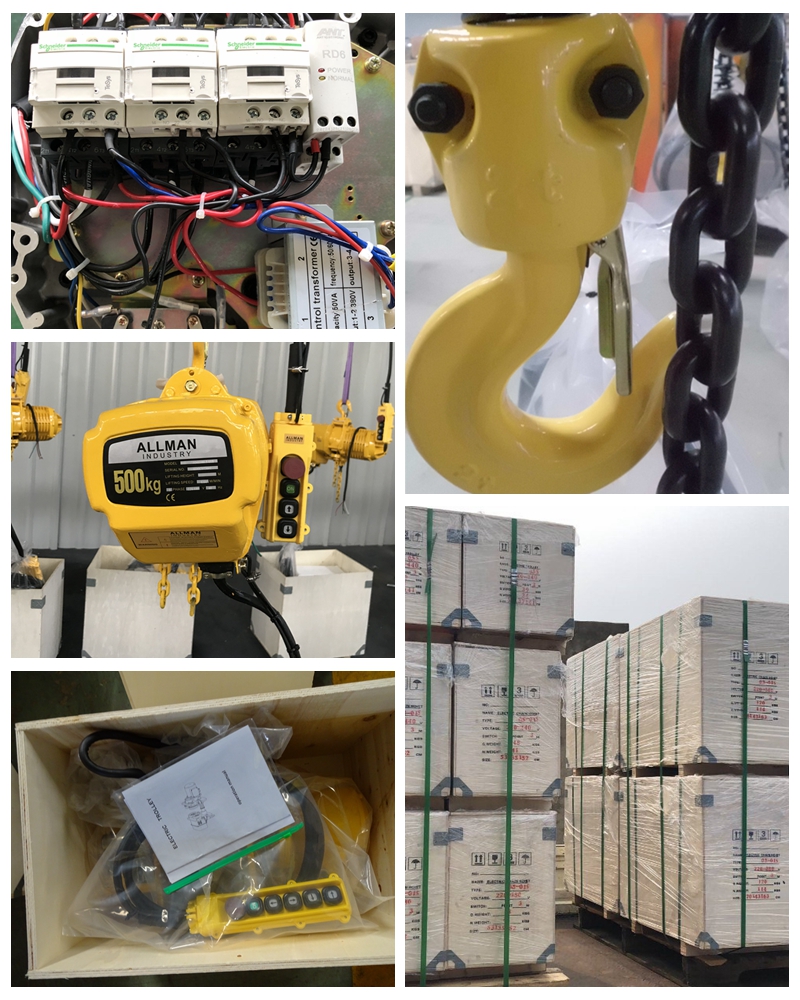

Detailed Pictures for AMEH Electric Chain Hoist
 |
 |

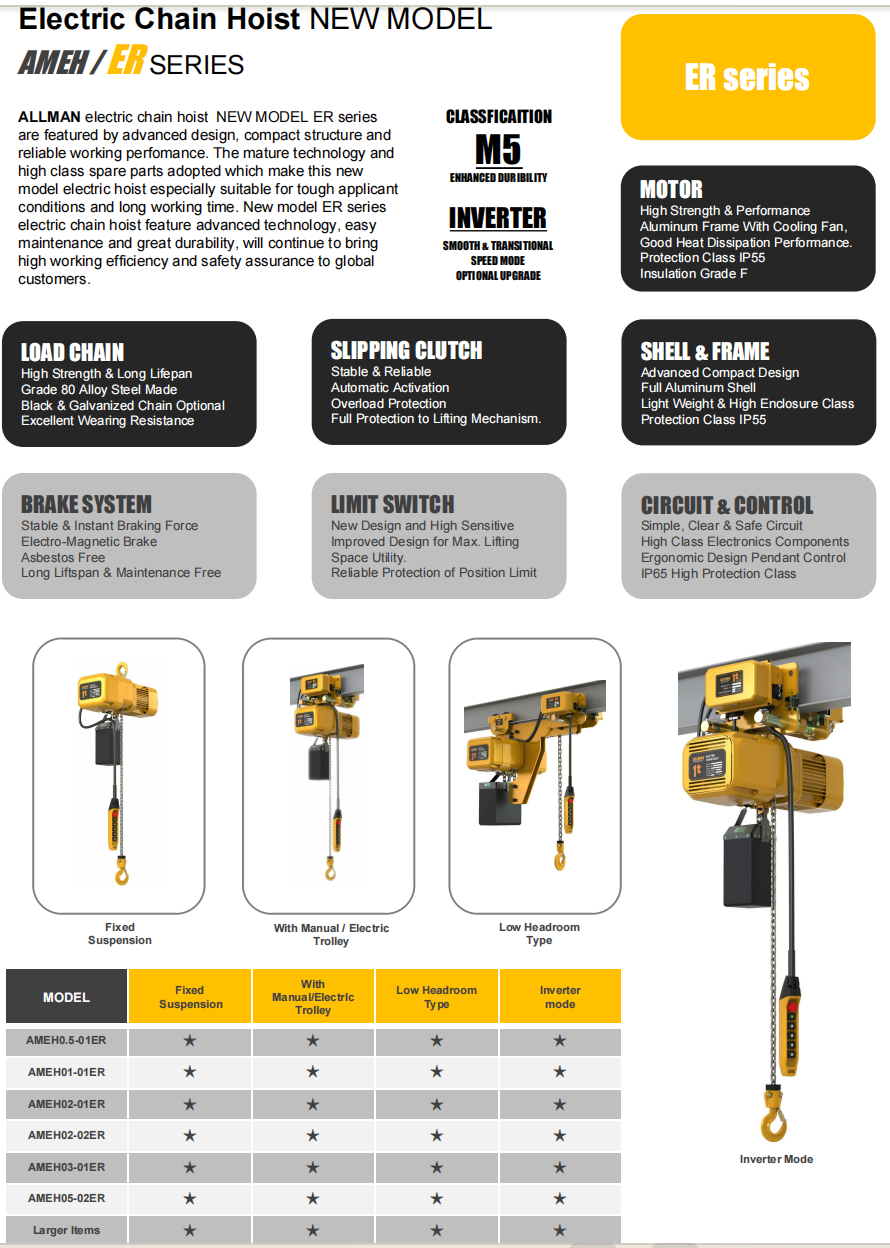

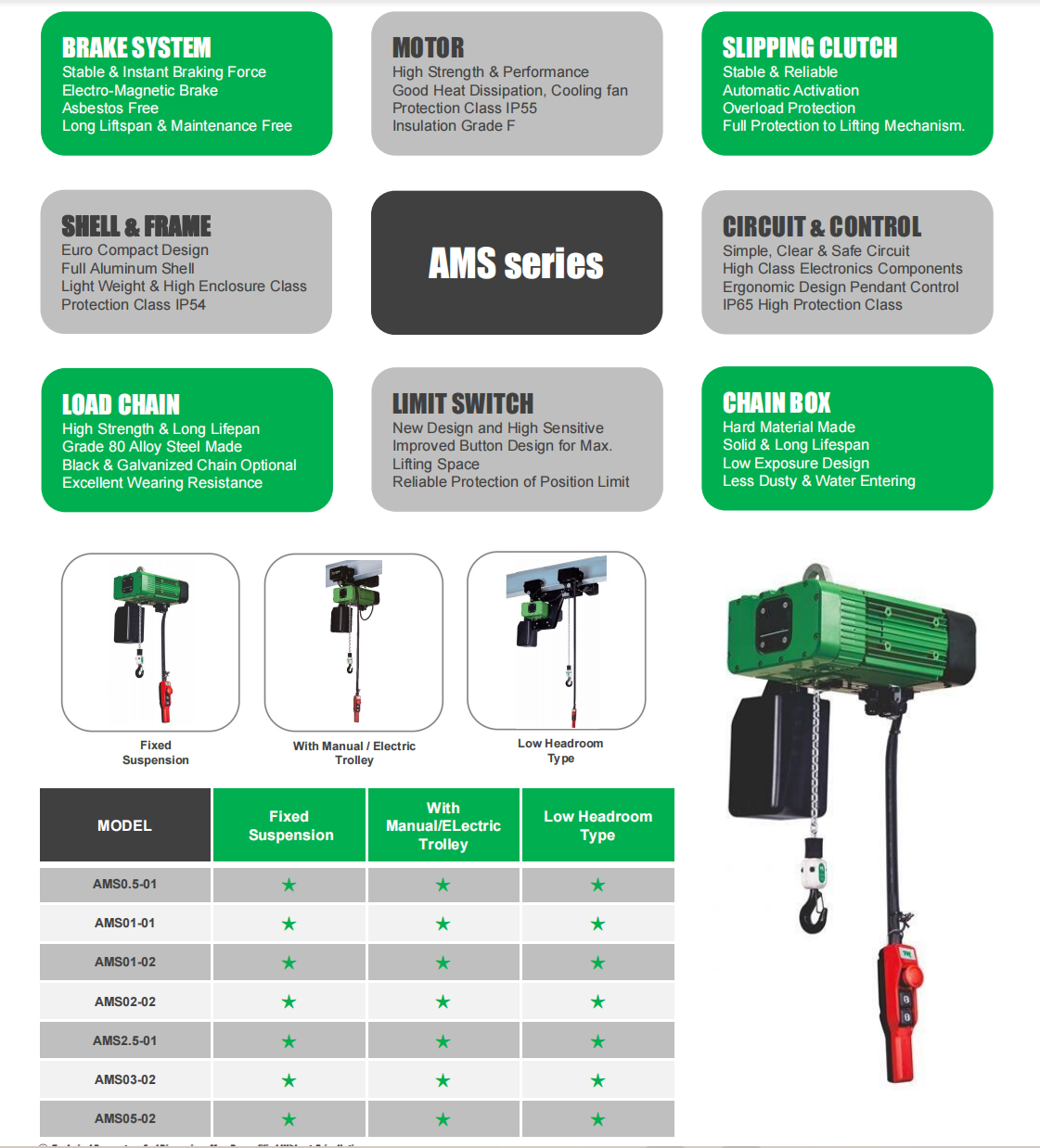

Features Of New Model Electric Chain Hoist With Inverter
For 2 speed Electric Chain Hoist with Inverter, we have 2 models, AMES/AMER2,they have some same charectics:like cooling fan, electronic magnetic motor, M5 working duty,etc, and also some different specializes, like different look,different speed and different price, if you have any question, please discuss with us freely.
● Dual-speed model comes standard with built-in frequency control system.
● The 1 2 ton electric hoist two-speed model's frequency conversion speed control reduces load swing and enables smoother lifting and lowering operations.
● Friction clutch and upper/lower limit switches, which were developed independently to ensure safety, are equipped. The unique ergonomic design of the pushbutton controller greatly enhances the durability of the lifting chain and makes maintenance easier.
● The 5 ton electric hoist is designed with maintenance in mind, which improves the efficiency of the inspector's work. Unique nickel-plated load chain with enhanced fatigue and abrasion resistance.
●This electric hoist Unique motor with cooling fan, with optimised design of heat sink and fan cover.
 |
 |

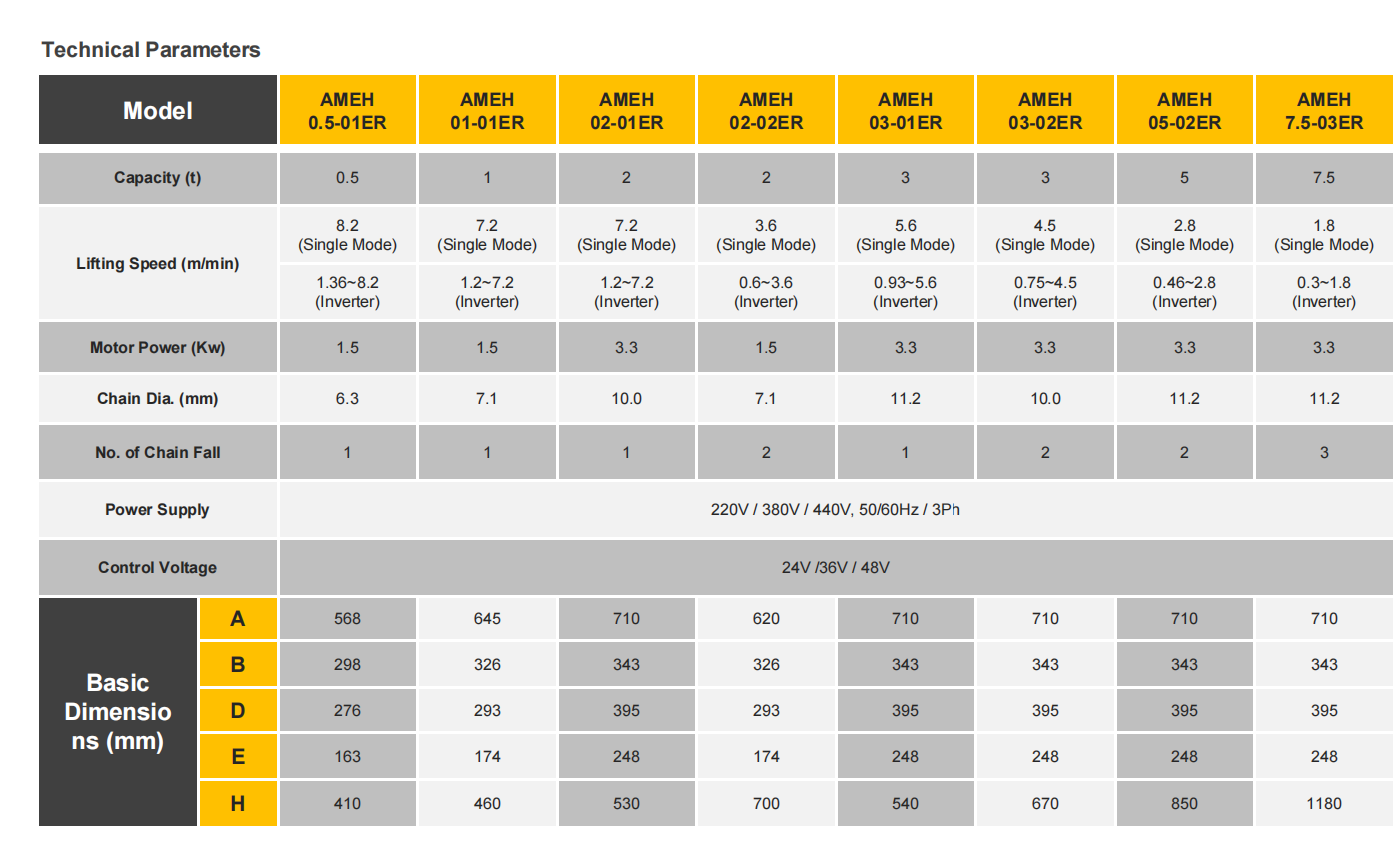

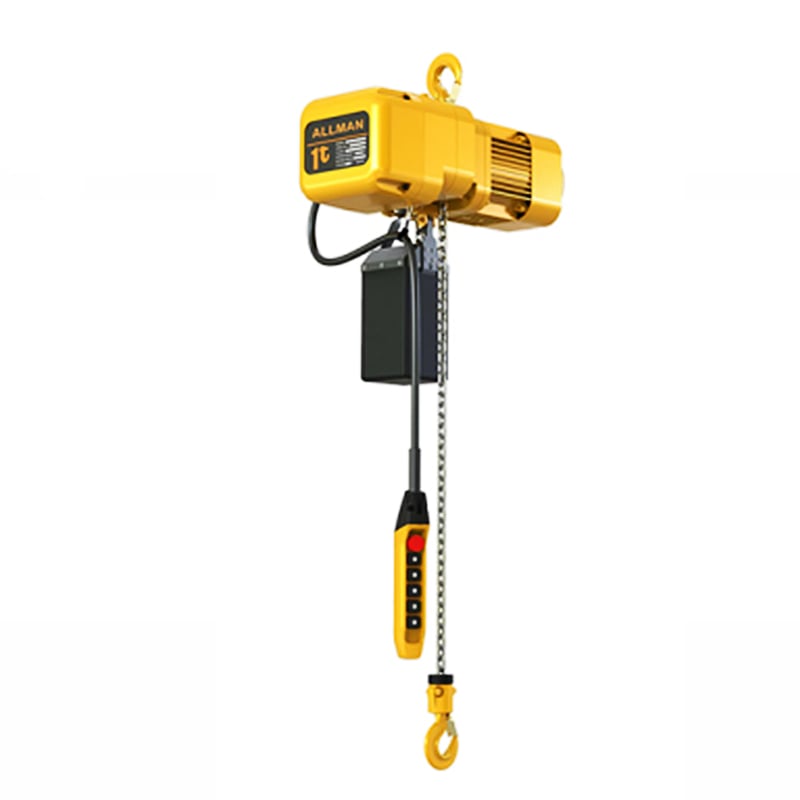

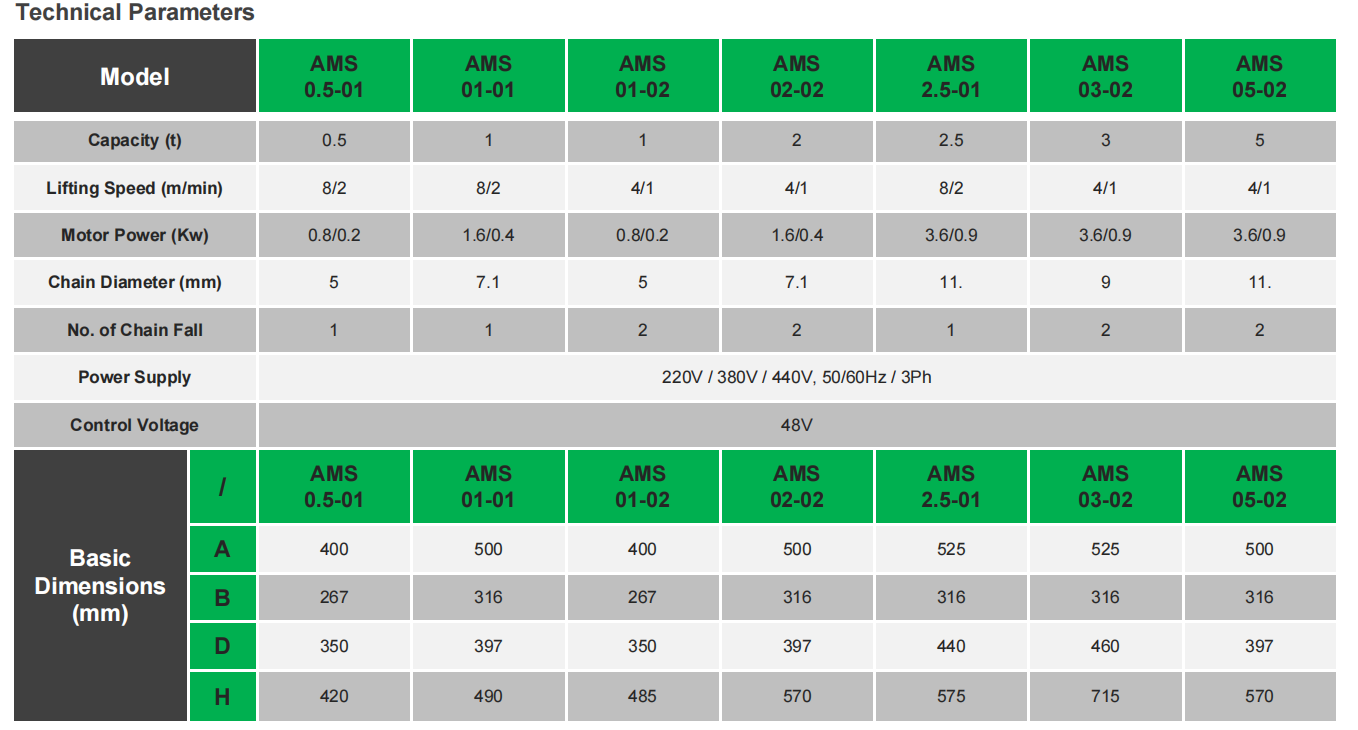

Technial Datas of Dual Speed ER2 Electric Chain Hoist

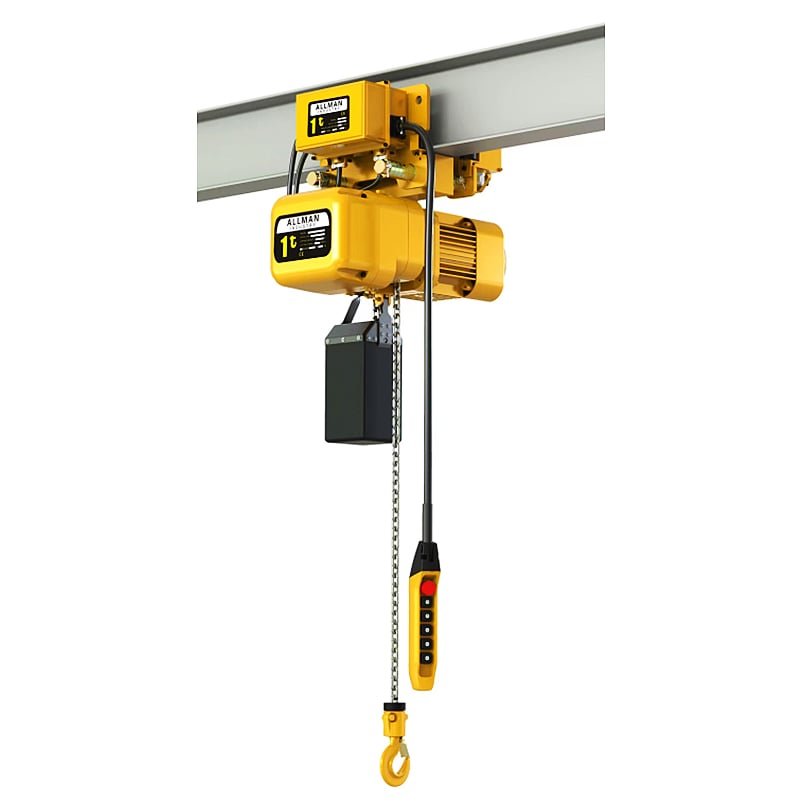

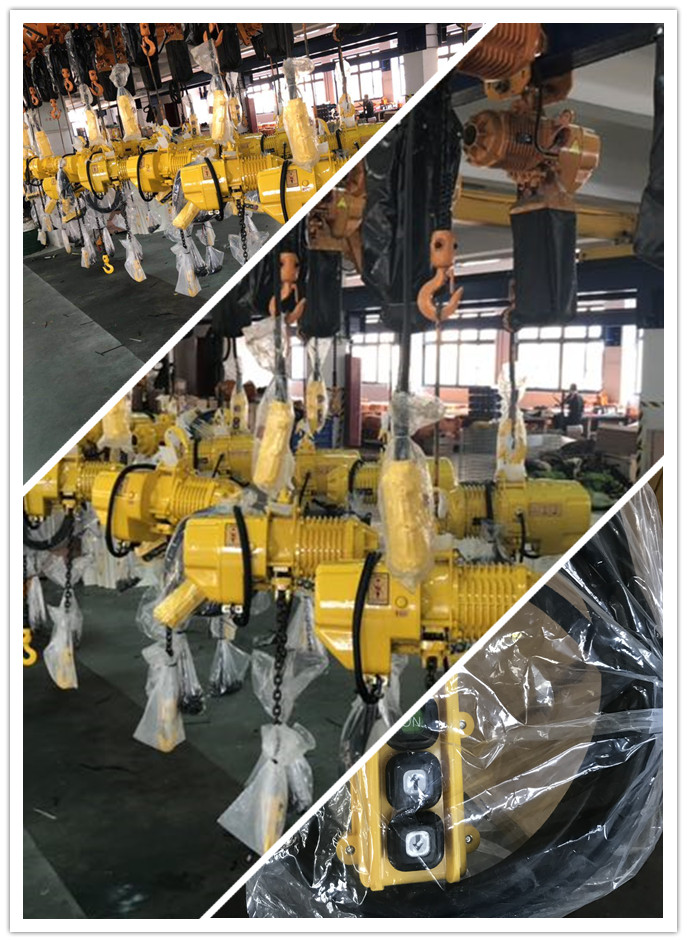

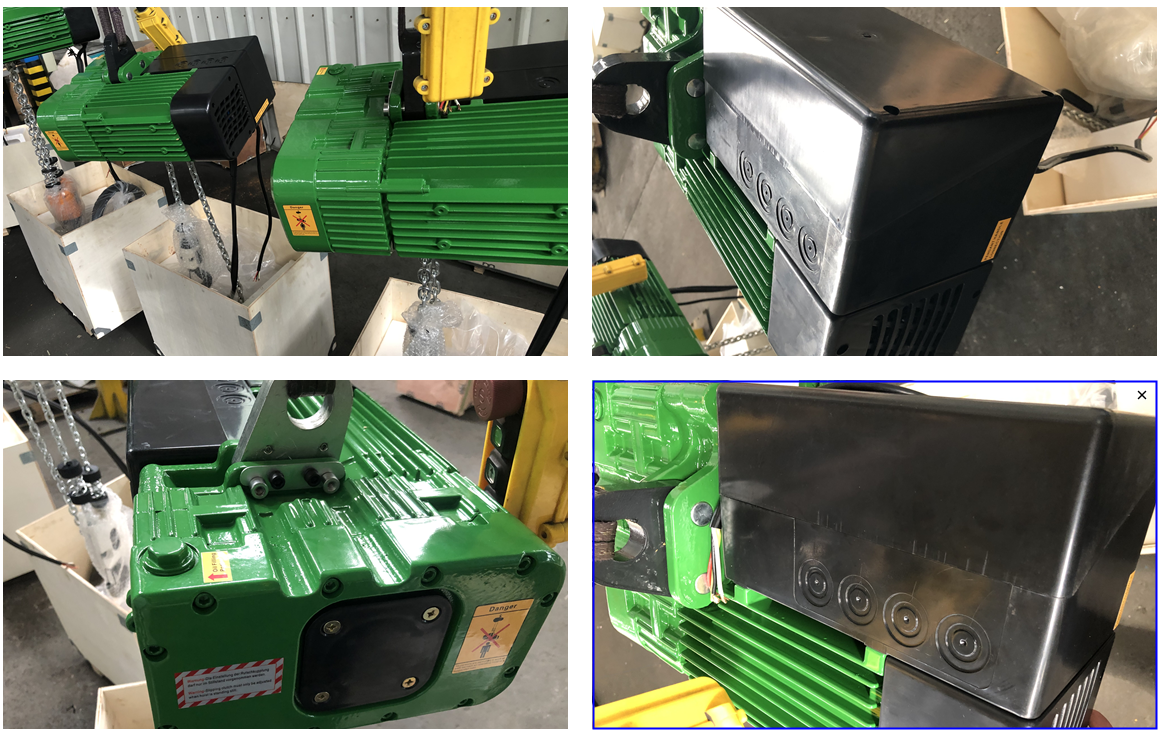

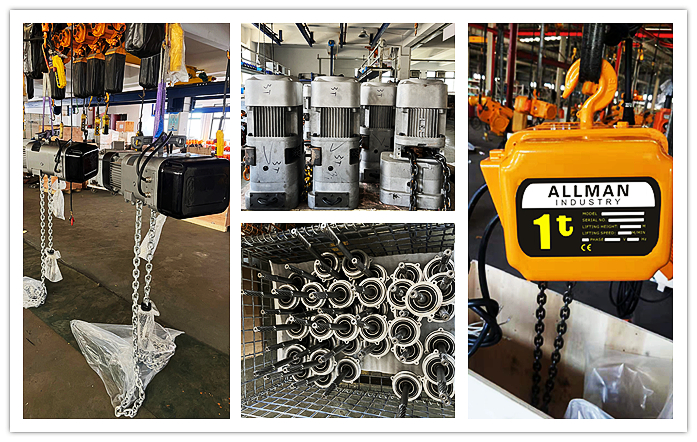

Detailed Pictures of Electric Chain Hoist Electric Hoist Crane 2 ton
 |
 |

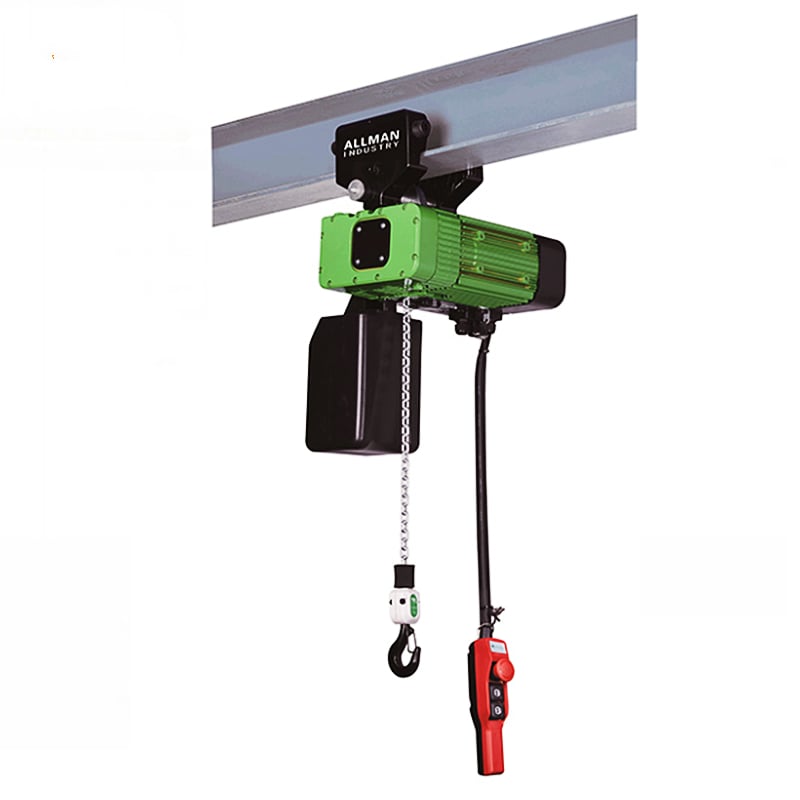

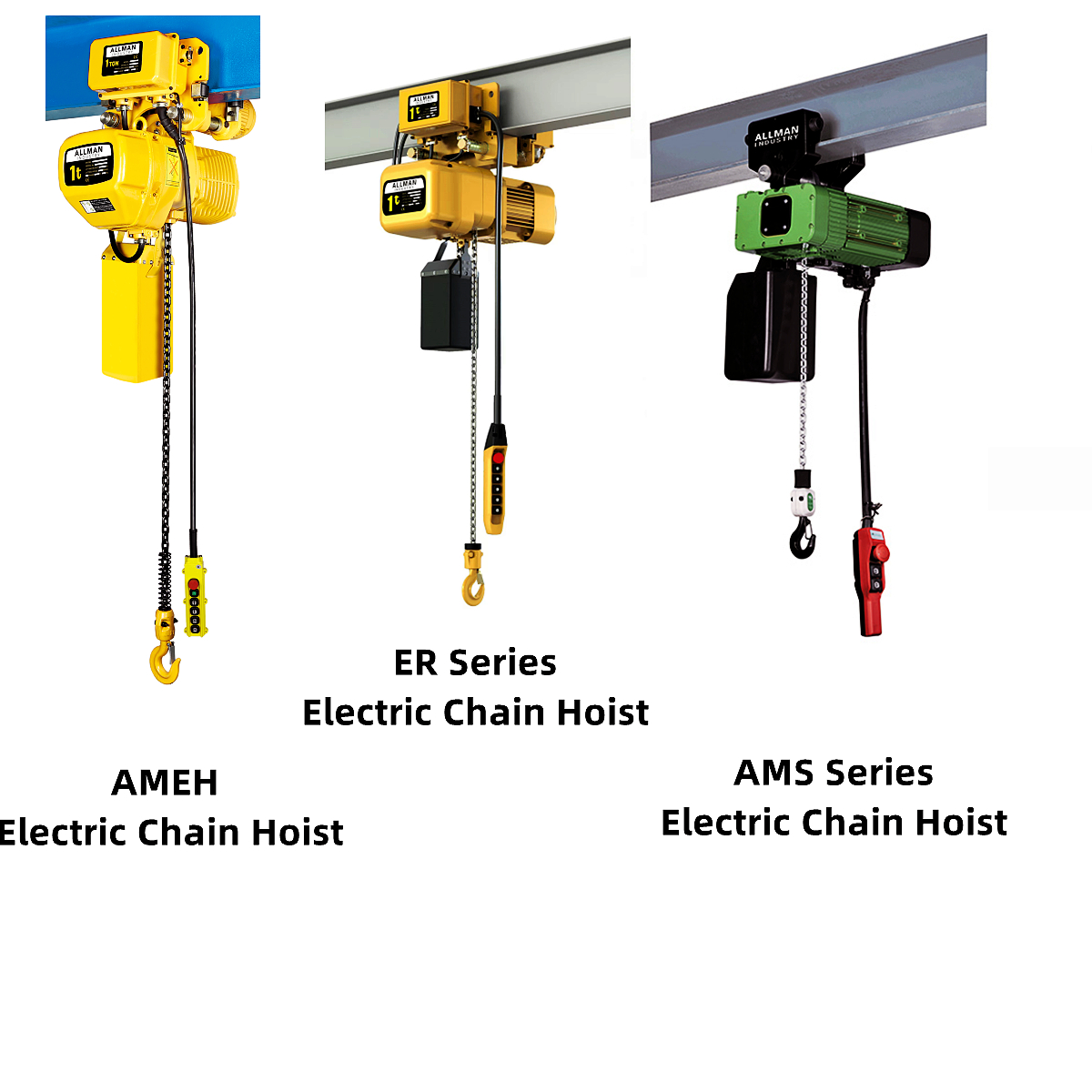

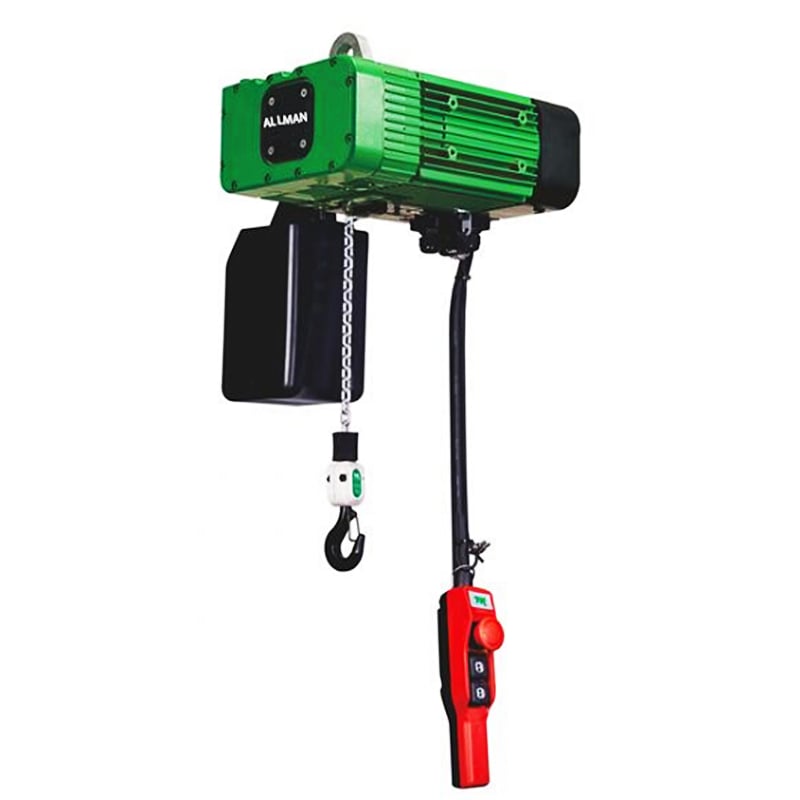

AMEH Electric Chain Hoist AMSand AMER Series
 |
|

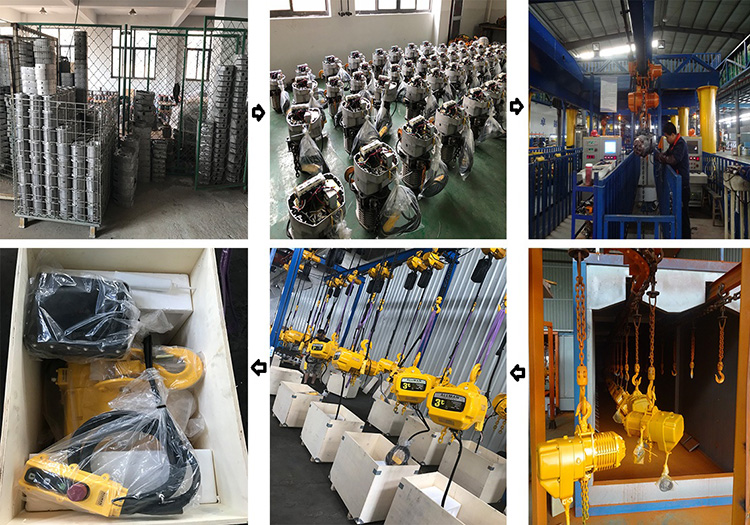

Production Process of the Electric Chain Hoist
Production Process:
Raw Material→Grinding→Assembly→Testing→Painting→Testing Again→Packaging
ALLMAN Certification
Almost all our lifting products have CE certification. Electric chain hoist and electric trolley both have the CE certification. If you need certification contact me freely, i will send it to you.
We have booth at canton fair every year.
If you have any interest in our 2 speed elecctrical hoist ,please send inquiry , we will provide the best service and price for reference.
