NANTONG ALLMAN INDUSTRY CO., LTD is a leading player in the machinery industry, specializing in electric chain hoists, wire rope hoists, electric winches, manual chain hoists, and beam trolleys.

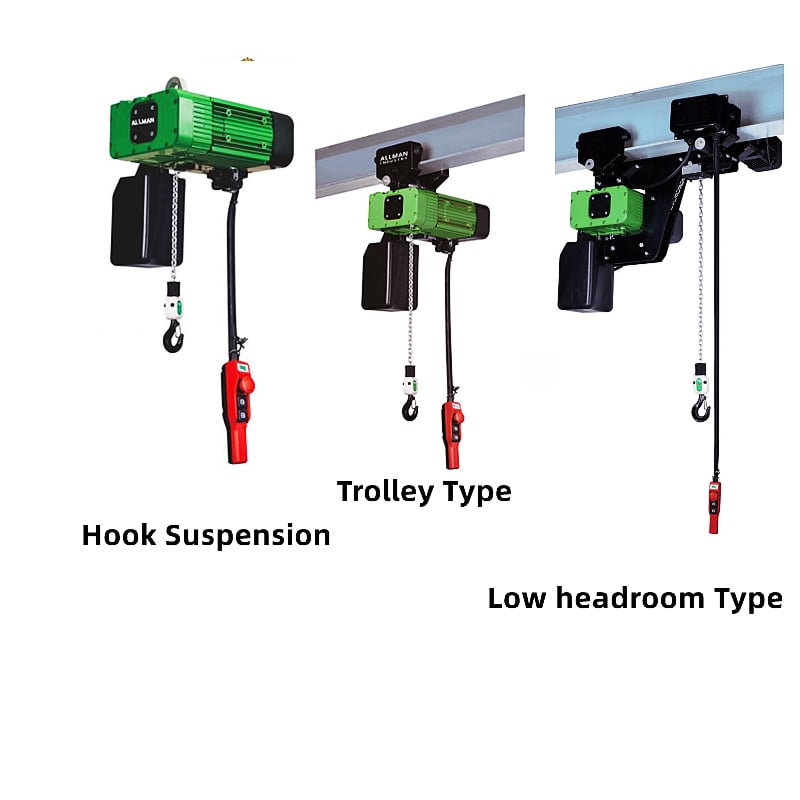

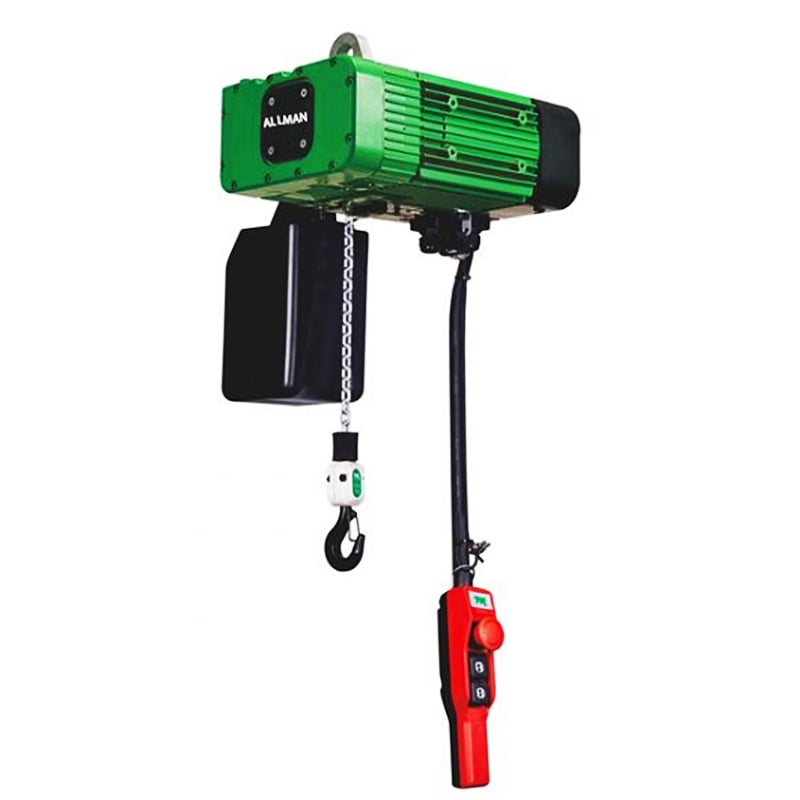

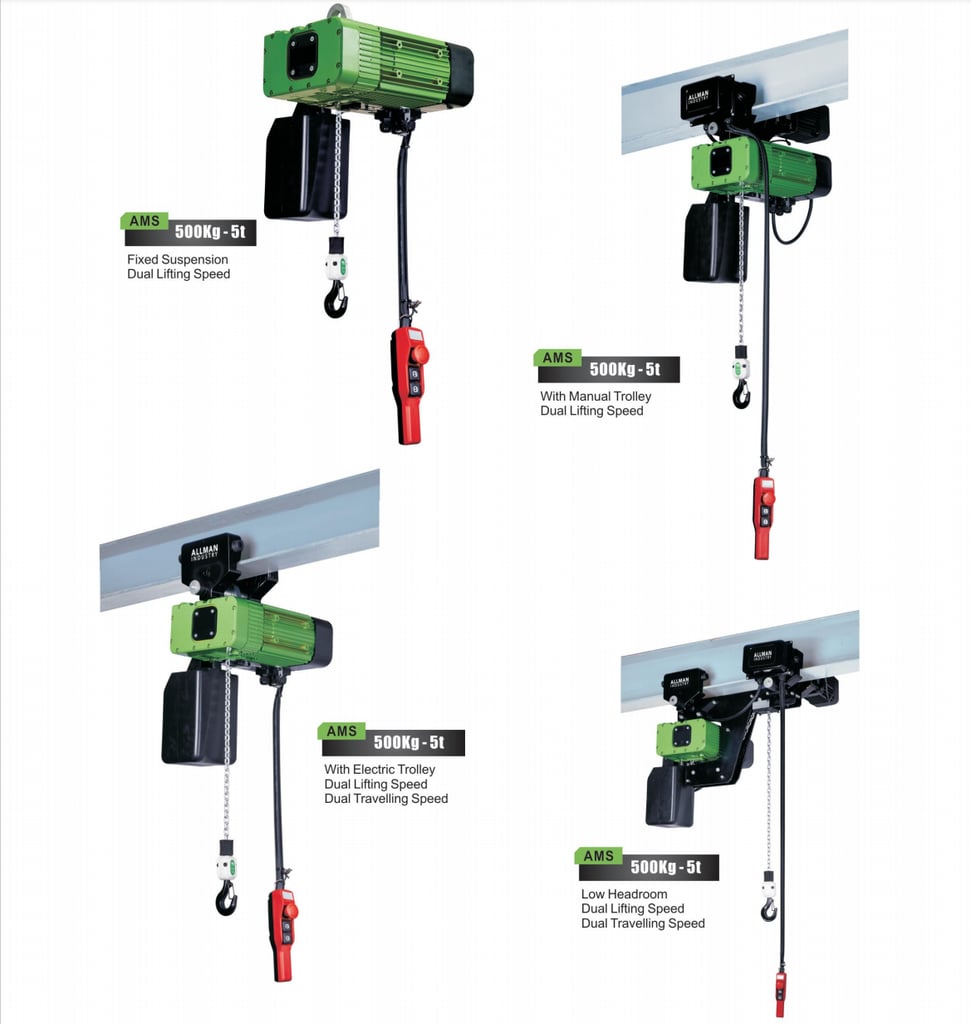

The S series chain hoists has a standard hook suspension with available optional Plain, or Motorized trolley.

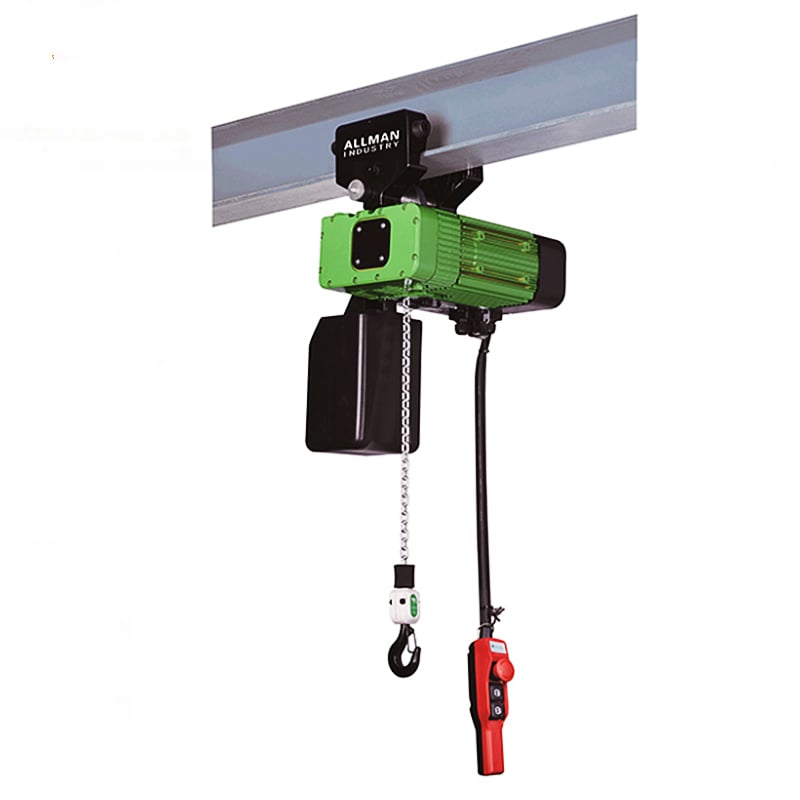

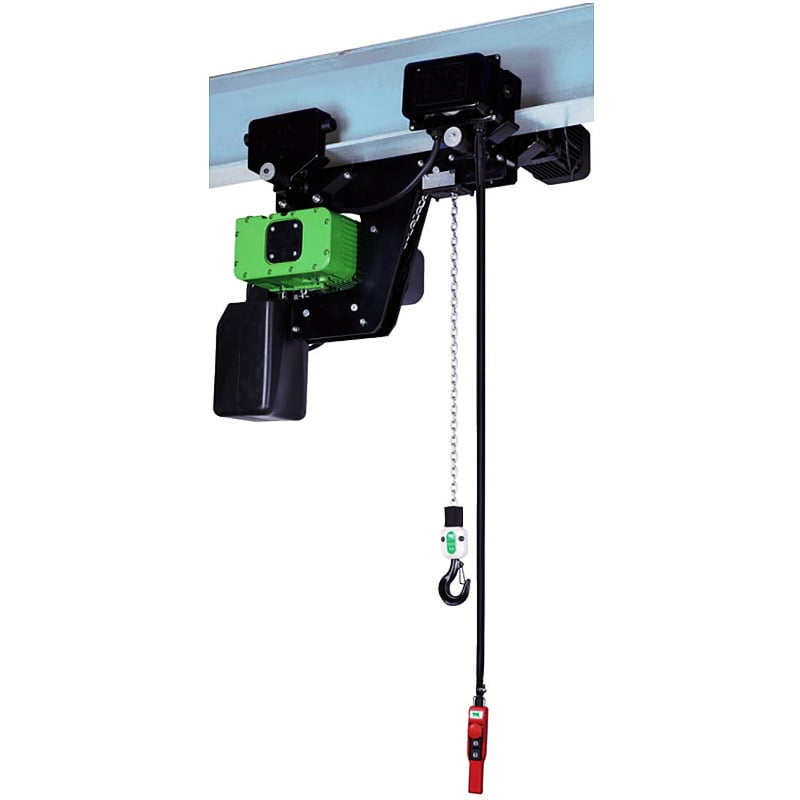

Motorized trolley option is designed to enable large hook paths even at standard headroom, it is also available with a short headroom, reducing the headroom by 33%.
The direct suspension from the solid cast iron chain guide supports load at point of engagement.
Features of AMS Series Electric Chain Hoist Manufacturer
| Configuration Items | Standard Configurations | Selectable Configurations |
| Lifting Height & Chain Box | Standard Chain Length For Liting Height : 3M |
Mutiple Lifting Height Selectable (By Requirements) |
| Power Input (Single Volt. Mode) |
Standard Power Input Volt. Index 380V/50Hz/3Phase |
220V~480V Power Input Volt. Index selectable ①International Business Only |
| Power Input (Double Volt. Mode) | Standard Power Input Single Volt. Mode |
Multiple Power Input Double Volts Mode selectable ①International Business Only ①Consult ALLMAN For Details |
| Overload Protection | Standard Friction Clutch | Electric Overload Protection Device Selectable |

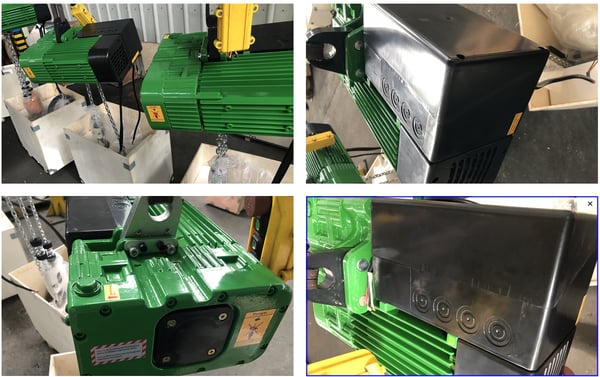

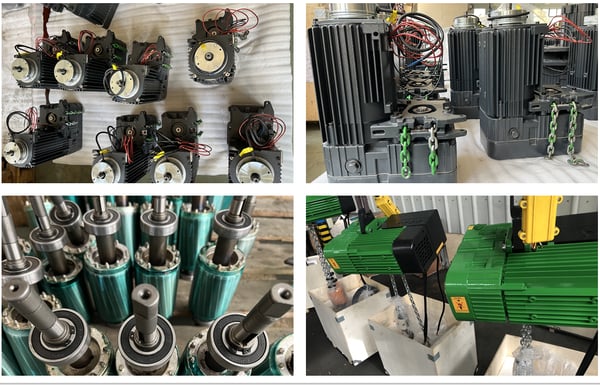

Detailed Pictures of Wholesale Electric Hoist
 |
 |

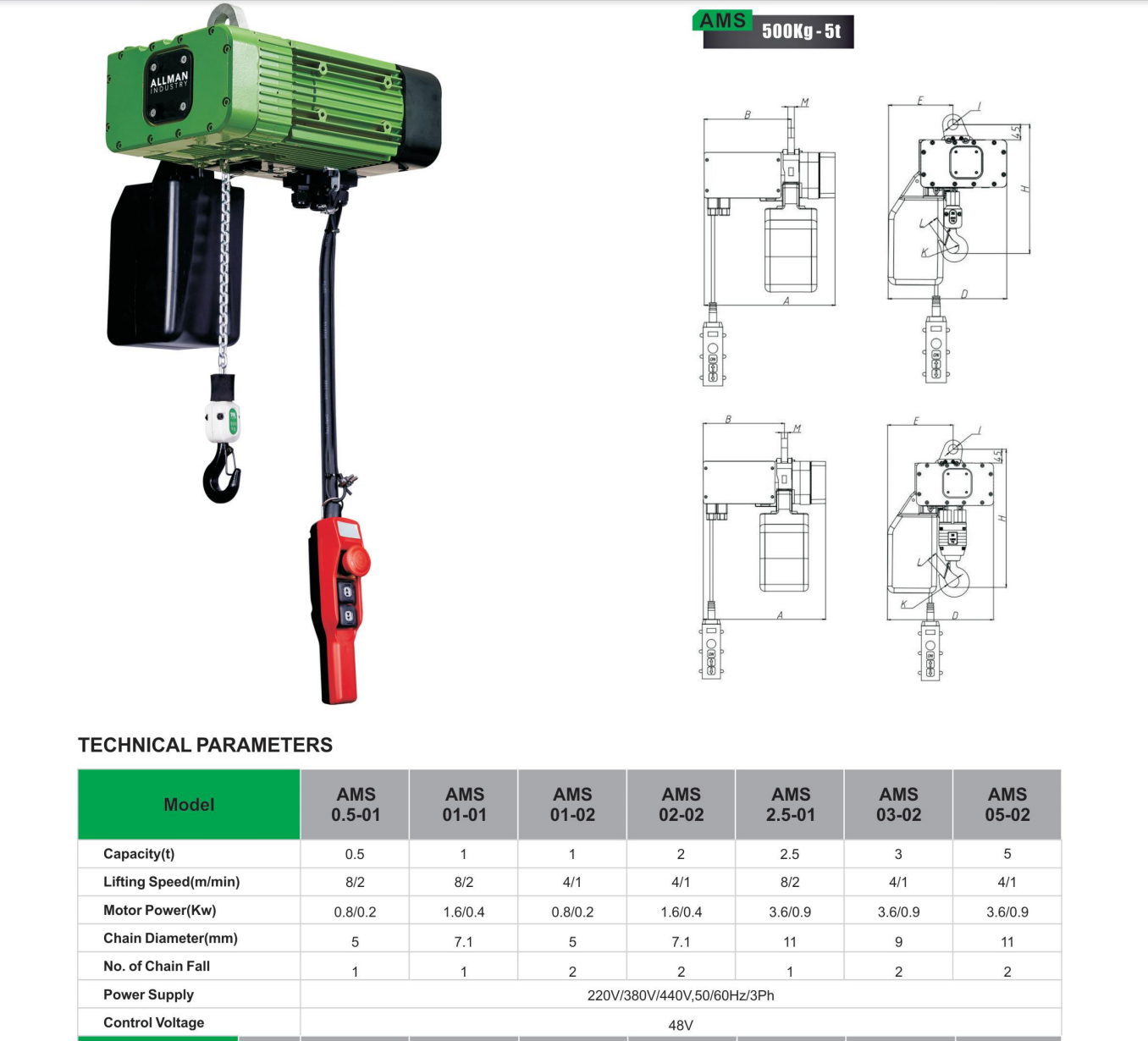

Technical Parameters of Electric Hoist Factory
|
Model |
AMS 0.5-01 |
AMS 01-01 |
AMS 01-02 |
AMS 02-02 |
AMS 2.5-01 |
AMS 03-02 |
AMS 05-02 |
|
|
Capacity (t) |
0.5 |
1 |
1 |
2 |
2.5 |
3 |
5 |
|
|
Lifting Speed (m/min) |
8/2 |
8/2 |
4/1 |
4/1 |
8/2 |
4/1 |
4/1 |
|
|
Motor Power (Kw) |
0.8/0.2 |
1.6/0.4 |
0.8/0.2 |
1.6/0.4 |
3.6/0.9 |
3.6/0.9 |
3.6/0.9 |
|
|
Chain Diameter (mm) |
5 |
7.1 |
5 |
7.1 |
11. |
9 |
11. |
|
|
No. of Chain Fall |
1 |
1 |
2 |
2 |
1 |
2 |
2 |
|
|
Power Supply |
220V / 380V / 440V, 50/60Hz / 3Ph |
|||||||
|
Control Voltage |
48V |
|||||||
CE Certification of Electric Hoist Supplier
1. Q : Are you manufacturer or trading company ?
A : Allman company is intergrating of mannufacturer and trading . We produce electric chain hoist and electric winches . Meanwhile , our company is a professional supplier of various lifting and material handling equipment , product include : wire rope hoist , hand chain hoist , lever hoist , hoist trolleys , hand winches , tirfor winches , lifting magets , lifting clamps , pulley block , crane scales , crane and crane parts , Aluminum and fiberglass ladders etc .
2. Q : How about your product quality ?
A : " Quality is our company's life , Safety always comes first ." It's our business principle and our promise to customers . Based on this , we focuse on every details about the products , from the raw material to the procession till the complete products finishing , we have stricty quality control system . At least 5 steps inspection during the whole procession .
3. Q: How about the warranty ?
A : Usually for the electrical wearing parts , 1 years warranty . Others parts 3 years for the winch.
4. Q : Any after-sales service ?
A: Sure , our trained team including the sales and technicians will provide you with strong after-sales service at any time .
5. Q: Can we have our OWN brand on the products ?
A : Sure , OEM is totally acceptable .
6. Q : What’s the MOQ ?
A : Sample order is acceptable , MOQ is 1 set .
7. Q : How about the lead time ?
A : Lead time depends on the order quantity , If less than 10 units ,it will about 10 days . If one container , it will take around 20 days .
8. Q : Which sea port is the nearest ?
A : Shanghai Port is the nearest for us , But we can ship the products as your request .
9. Q : How about the payment term ?
A : For new customers , the first order amount less than $5000.00, 100% by TT before production . Amount over $5000,00 , 30% in advance , 70% before delivery .
