    NANTONG ALLMAN INDUSTRY CO., LTD is a leading player in the machinery industry, specializing in electric chain hoists, wire rope hoists, electric winches, manual chain hoists, and beam trolleys.

    Electric Winch Factory

    Model: AMK

    Load Capacity: 500Kg--5Ton

    Wire Rope Length: 0~100m

    Workinf Grade: M4

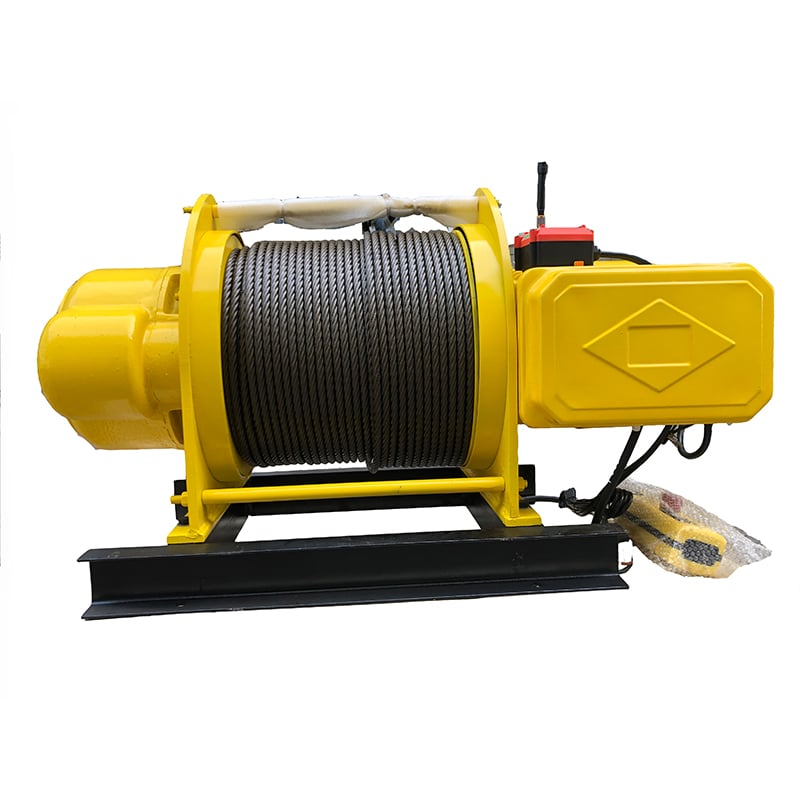

    AMK Electric Winch

    ALLMAM electric winch Model AMK are specially designed and developed for multiple function purpose. They adopt mature technology, universal parts and reliable structure for stable working performance. This model electric winch can be widely used on various kind
    of working applications. The structure is simple so less mainenance is required. Spare parts can be easily found and replaced. With AMK electric winch, customers can handle different works more easily and quickly.

    Features of AMK Electric Winch:

    • Efficient and reliable motor, with mature technology, processing, and good heat dissipation.
    • High strength(1770MPa) steel wire rope adopted as standard for AMK electric winch. Clean and well greased.
    • Forged by alloy steel made high strength hook with latch attached can make sure good safety guarantee.
    • High enclosure class IP55 for complete machine which allow to use outside environment.
    • Steel made cover and shell can prevent heavy impact on winch body and protect the parts inside.
    • Wide range voltage available. (220V/380V/440V, etc)
    • Solid and free-fumigation wooden box packing suitable for land & sea shipping.

    Technical Date of AMK Winch:

    Model Rope Reeving Rated Capacity(Kg) Working Speed(m/min) Rope Length(m)

    Rope

    Diameter(mm)

    		 Motor Power(Kw/hp) Power Supply

    AMK

    500/1000

    		 Single 500kg 16 0~100( by requirments) 9mm 1.5kw(2.0hp)

    AC 220V / 380V / 440V

    3Ph
    Double 1000kg 8

    AMK

    1000/2000

    		 Single 1000kg 16 11mm 3.0kw(4.1hp)
    Double 2000kg 8

    AMK

    1500/3000

    		 Single 1500kg 16 13mm 4.5kw(6.1hp)
    Double 3000kg 8

    AMK

    2500/5000

    		 Single 2500kg 16 15mm 7.5kw(10.2hp)
    Double 5000kg 8

    AMK

    5000/10000

    		 Single 5000kg 16 22mm 13kw(17.7hp)
    Double 10000kg 8

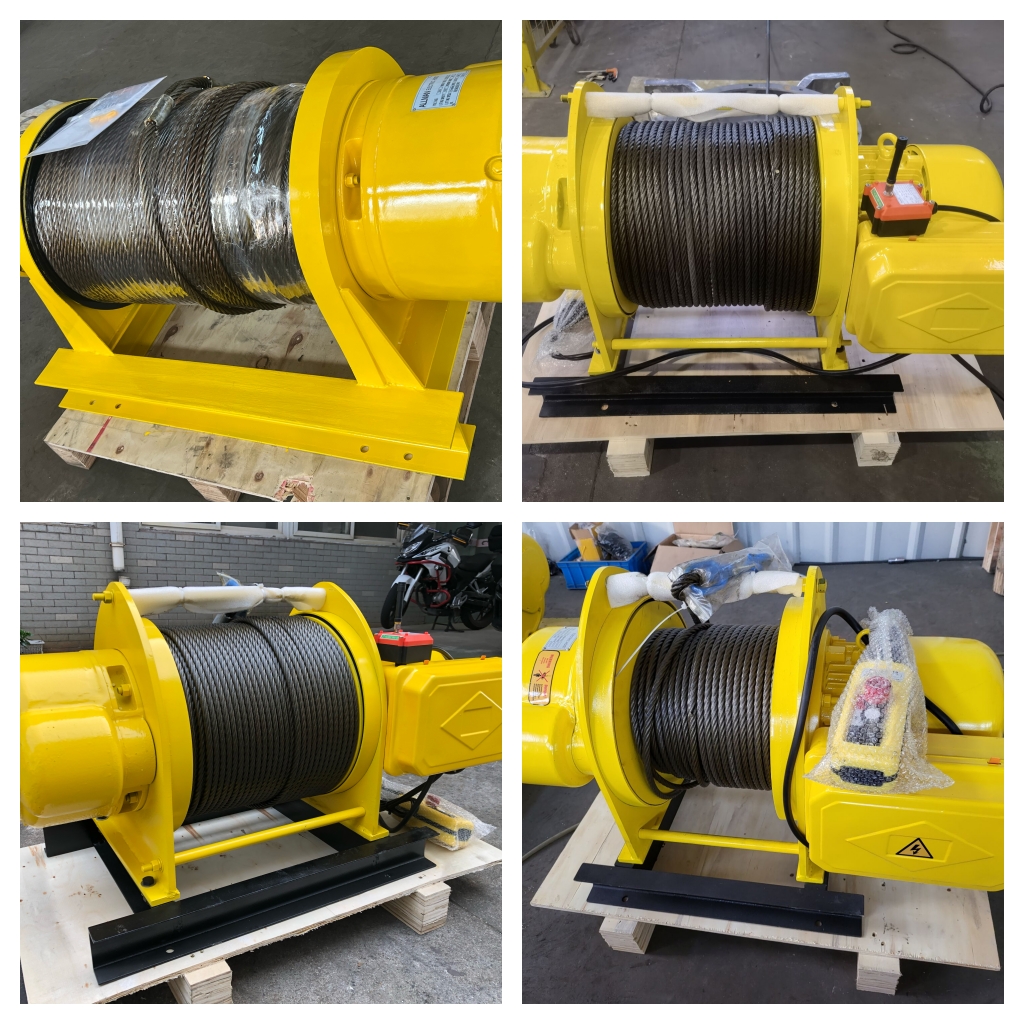

    Finished AMK Winches Shown:

    AMK Electric Winch Factory

    Introduction of the Electric Winch Suppliers--ALLMAN

    ALLMAN- a professional electric winch supplier has evolved itself into a specialist in the field of hoisting and lifting equipment. With over 10 years rich experience, we are capable of delivering an extensive range of material handling equipment and lifting products. Whether it comes to construction, manufacturing, mining, transportation, railway, electric power, wind power, theater, offshore, or ship building, you name it, we provide it.

    Safety, quality and professionalism are the three key words to ALLMAN hoisting and lifting equipment. Safety is one of the main concerns in the world where accidents could be easily encountered. Housing and lifting jobs is no stranger to risks. Safety can only be guaranteed by quality as well as professionalism. Our expertise in hoisting and lifting equipment and our long-acquired experience have helped us to become one of the most professional parties in the field of work.
    With ALLMAN you can rest assured of obtaining the best value for your money. With our efficient and well-controlled process, we safeguard continuity in our product quality. European norms and standards are complied with. We maintain a substantially great stock level that is constantly monitored. This guarantees one of the fastest delivery times among our peers.
    ALLMAN hoisting and lifting equipment is one of the most important and stable players in the market. We are well known to offer products of trustworthy and solid quality at a competitive price. In addition, we have build up an extensive distributor network worldwide over the years. With this network, we ensure fast delivery and best available after sales support to our customers.

    Certifications of the Wholesale Electric Winch:

    AMK Electric Winch Factory

    Exhibition:

    AMK Electric Winch Factory

    FAQ：

    1. Q: Can you accept one unit of the winch as MOQ?

    A: Sure, of course.

    2. Q: What is the price for the electric winch?

    A: Since the price is depending on the the capacity, the lifting height and the quantity. You can wirte the inflrmation in your inquiry. So that i can check the price you as soon as i received your inquiry.

    3. Q: Which is the best shipping port to you?

    A: Shanghai port is the nearest one to us. But if you need us to delivery the goods to other places, we can acept.

    4. Q: Which delivery term you can provide?

    A: We provide FOB， CFR， CIF， DDU and EXW price.

    5. Q: Can you accept Paypal?

    A: Yes, we accept three payment methods： TT， L/C， Paypal.
