NANTONG ALLMAN INDUSTRY CO., LTD is a leading player in the machinery industry, specializing in electric chain hoists, wire rope hoists, electric winches, manual chain hoists, and beam trolleys.

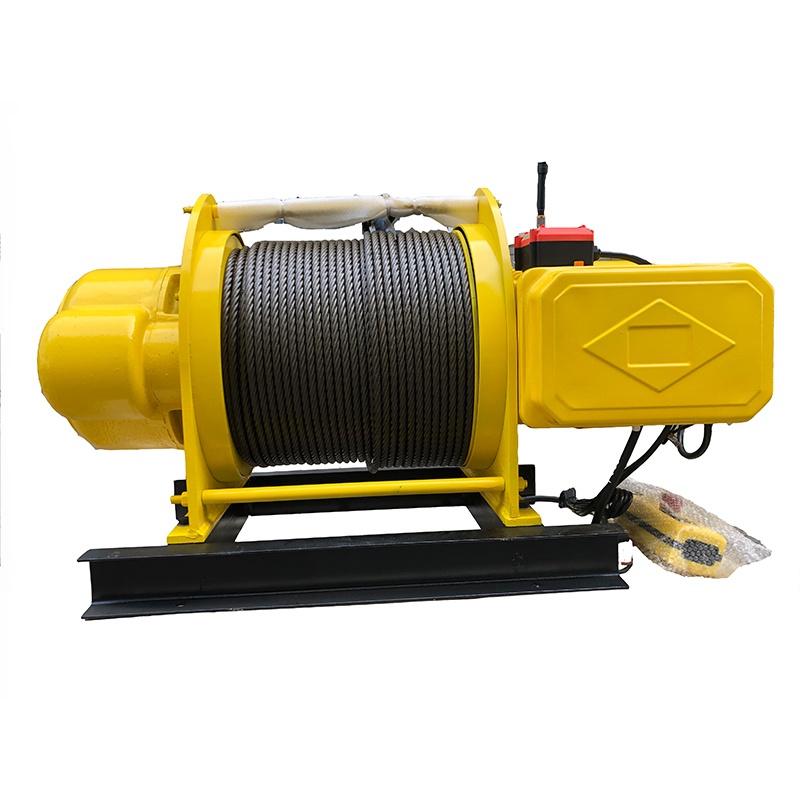

Heavy Duty Electric Winch
Load Capacity: 500kg, 1ton, 1.5ton, 2ton, 5ton
Wire Rope Length: 0~100m
Introducing the AMK Electric Winch, the ultimate solution for all your lifting needs. With its powerful electric hand winch, this top-tier product guarantees efficient performance and reliability. Ideal for various applications in the machinery industry, it effortlessly tackles heavy loads with ease. Boasting exceptional features and functions, including superior durability and user-friendly operation, it's the go-to choice for professionals. Gain a competitive edge with the AMK Electric Winch and experience its unparalleled advantages today!
| Model | Rope Reeving | Rated Capacity(Kg) | Working Speed(m/min) | Rope Length(m) |
Rope Diameter(mm) |
Motor Power(Kw/hp) | Power Supply |
|
AMK 500/1000 |
Single | 500kg | 16 | 0~100( by requirments) | 9mm | 1.5kw(2.0hp) |
AC 220V / 380V / 440V 3Ph |
| Double | 1000kg | 8 | |||||
|
AMK 1000/2000 |
Single | 1000kg | 16 | 11mm | 3.0kw(4.1hp) | ||
| Double | 2000kg | 8 | |||||
|
AMK 1500/3000 |
Single | 1500kg | 16 | 13mm | 4.5kw(6.1hp) | ||
| Double | 3000kg | 8 | |||||
|
AMK 2500/5000 |
Single | 2500kg | 16 | 15mm | 7.5kw(10.2hp) | ||
| Double | 5000kg | 8 | |||||
|
AMK 5000/10000 |
Single | 5000kg | 16 | 22mm | 13kw(17.7hp) | ||
| Double | 10000kg | 8 |
