NANTONG ALLMAN INDUSTRY CO., LTD is a leading player in the machinery industry, specializing in electric chain hoists, wire rope hoists, electric winches, manual chain hoists, and beam trolleys.

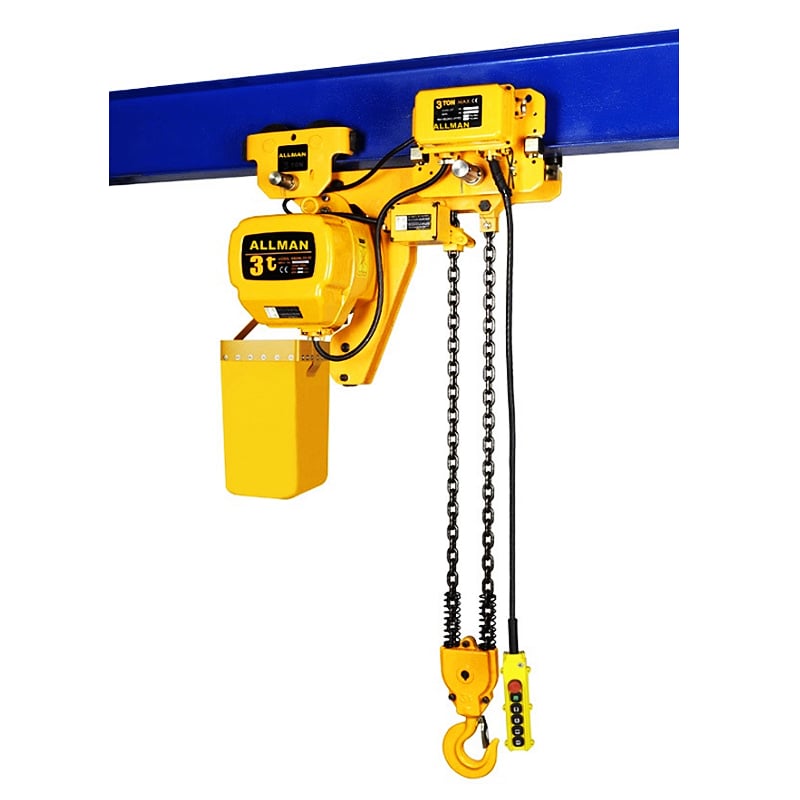

Introducing the AMEH Electric Chain Hoist(Low Headroom Type), the ultimate solution for your lifting needs. With its advanced electric pulley hoist technology, this hoist guarantees efficient and effortless lifting operations. Designed for low headroom spaces, it maximizes workspace utilization. From heavy machinery to construction projects, this hoist excels in various applications. Its exceptional functions ensure smooth and safe lifting, making it a reliable choice. Benefit from its remarkable advantages, including durability, precision, and ease of use. Elevate your productivity with the AMEH Electric Chain Hoist(Low Headroom Type).
| Model | 0.5-01L | 01-01L | 02-01L | 03-01L | 03-02L | 05-02L |
| Capacity(t) | 0.5 | 1 | 2 | 3 | 3 | 5 |
| Lifting Speed(m/min) | 7.2 | 6.6 | 6.6 | 5.4 | 4.4 | 2.7 |
| Lifting Motor Power(kw) | 0.8 | 1.5 | 3 | 3 | 3 | 3 |
| Traveling Speed(m/min) | 21 | 21 | 21 | 21 | 21 | 11 |
| Traveling Motor Power(kw) | 0.4 | 0.4 | 0.4 | 0.75 | 0.75 | 0.75 |
| Rotation Speed(r/min) | 1440 | |||||
| Height of Lift | 3M as standard, customized optional | |||||
| Power Supply | 220V-690V 3p | |||||
| Control Voltage | 24V/36V/48V | |||||
| IP grade | 54 | |||||
| Working Grade | M4 | |||||
