    • ALLAMN Electric Winch Heavy Duty Class

    NANTONG ALLMAN INDUSTRY CO., LTD is a leading player in the machinery industry, specializing in electric chain hoists, wire rope hoists, electric winches, manual chain hoists, and beam trolleys.

    Load Capacity: 0.5-20ton

    Working Grade: M5

    Product Description

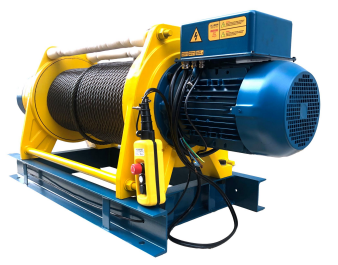

    ALLMAN electric winch Model AMW are featured by solid structure and reliable working performance. The advanced design and high class spare parts adopted which make our products especially suitable for heavy duty working conditions and long working time. The mature and multiple configuration options allow our customers to flexibly choose the most suitable products they need.



    Model

    Rated Capacity（Ton）

    Rope Length(m)

    Working Speed

    (m/min)

    Motor Power

    (Kw/hp)

    Rope Dia.

    (mm)

    Power Supply

    (volt.freq.ph)

    AMW-S

    500-M

       0.5

    ≤80

    9~14

    1.5KW(2.0hp)

    9

    220V/380V/440V, 50/60Hz/3Ph

    AMW-S

    500-L

       0.5

    81~150

    9~14

    1.5KW(2.0hp)

    9

    AMW-S

    750-M

       0.75

    ≤80

    9~14

    2.2KW(3.0hp)

    10

    AMW-S

    750-L

       0.75

    81~150

    9~14

    2.2KW(3.0hp)

    10

    AMW-S

    1000-M

         1

    ≤80

    13~19

    3.0KW(4.1hp)

    11

    AMW-S

    1000-L

         1

    81~150

    13~19

    3.0KW(4.1hp)

    11

    AMW-S

    1600-M

        1.6

    ≤80

    13~19

    4.0KW(5.4hp)

    13

    AMW-S

    1600-L

         1.6

    81~150

    13~19

    4.0KW(5.4hp)

    13

    AMW-S

    2200-M

         2.2

    ≤100

    8~14

    5.5KW(7.5hp)

    16

    AMW-S

    2200-L

         2.2

    101~170

    8~14

    5.5KW(7.5hp)

    16

    AMW-S

    2200-XL

         2.2

    171~250

    8~14

    5.5KW(7.5hp)

    16

    AMW-S

    3200-M

         3.2

    ≤100

    8~14

    7.5KW(10.2hp)

    18

    AMW-S

    3200-L

         3.2

    101~200

    8~14

    7.5KW(10.2hp)

    18

    AMW-S

    3600-M

         3.6

    ≤100

    8~14

    9.2KW(12.5hp)

    18

    AMW-S

    3600-L

         3.6

    101~200

    8~14

    9.2KW(12.5hp)

    18

    AMW-S

    5000-M

           5

    ≤200

    9~13

    15KW(20.4hp)

    22

    AMW-S

    5000-L

           5

    201~350

    9~13

    15KW(20.4hp)

    22

    AMW-S

    8000-M

           8

    ≤170

    9~13

    18.5KW(25.2hp)

    26

    AMW-S

    8000-L

           8

    171~300

    9~13

    18.5KW(25.2hp)

    26



    PRODUCT FEATURES

    • Excellent working perfomance, duty class up to Grade M5. Stable and efficient for heavy duty working applications.
    • World famous brand motors WEG / SlEMENS as the strategic supplier who provide high class motors for AMW/S winch.
    • Various options of rope volume capacity can be optional by customer's requirement.
    • Wide range voltage available. (220V/380V/440V, etc). Dual voltage available (220V/380V,220V/440V)
    • High encosure class lP55 for complete machine which allow to use outside environment.
    • Solid and ergonomic design pendant control as standard. With lP65 protection and Emergency-Stop button for safety.
    • Wireless remote control can be optional by customer's requirement for long distance control.
    • Easy maintenance & Less working costs are required lifespan perfomance is long and remarkable.

    Certification of ALLMAN Electric Winch:

    1 Ton Heavy Duty Electric Winch

    ALLMAN Factory Introduction

    ALLMAN INDUSTRY specialized in providing winch equipments. With more than 20-years rich experience, we have developed and produced high quaility winches for different applications for international customers. We ensure you the outstanding quaility product and very best customers service for the best price.

    ALLMAN INDUSTRY believes that "Quaility and Safety" of our products and services is the most important value of the whole company. We always insist on providing high quaility and safety, easy operation and installation, less cost on working and maintenance to our global customers. Allman never sacrifices our quaility principle for cost competition. Our concentration and long working experience have helped us become a professional supplier in winch field.
