NANTONG ALLMAN INDUSTRY CO., LTD is a leading player in the machinery industry, specializing in electric chain hoists, wire rope hoists, electric winches, manual chain hoists, and beam trolleys.
| Model | Capacity (t) |
Control Voltage |
Power Supply |
No. of Chain Fall |
Insulation Class |
Lifting Speed (m/min) |
Lifting Motor Power (kw) |
Travelling Speed (m/min) |
Travelling Motor Power (kw) |
Rotation Speed (r/min) |
| 0.5-01L | 0.5 | 24V/36V/48V | 3P 220V-690V | 1 | F | 7.2 | 0.8 | 21 | 0.4 | 1440 |
| 01-01L | 1 | 1 | 6.6 | 1.5 | 21 | 0.4 | ||||
| 02-01L | 2 | 1 | 6.6 | 3 | 21 | 0.4 | ||||
| 02-02L | 2 | 2 | 3.3 | 1.5 | 21 | 0.4 | ||||
| 03-01L | 3 | 1 | 5.4 | 3 | 21 | 0.75 | ||||
| 03-02L | 3 | 2 | 4.4 | 3 | 21 | 0.75 | ||||
| 05-02L | 5 | 2 | 2.7 | 3 | 11 | 0.75 |

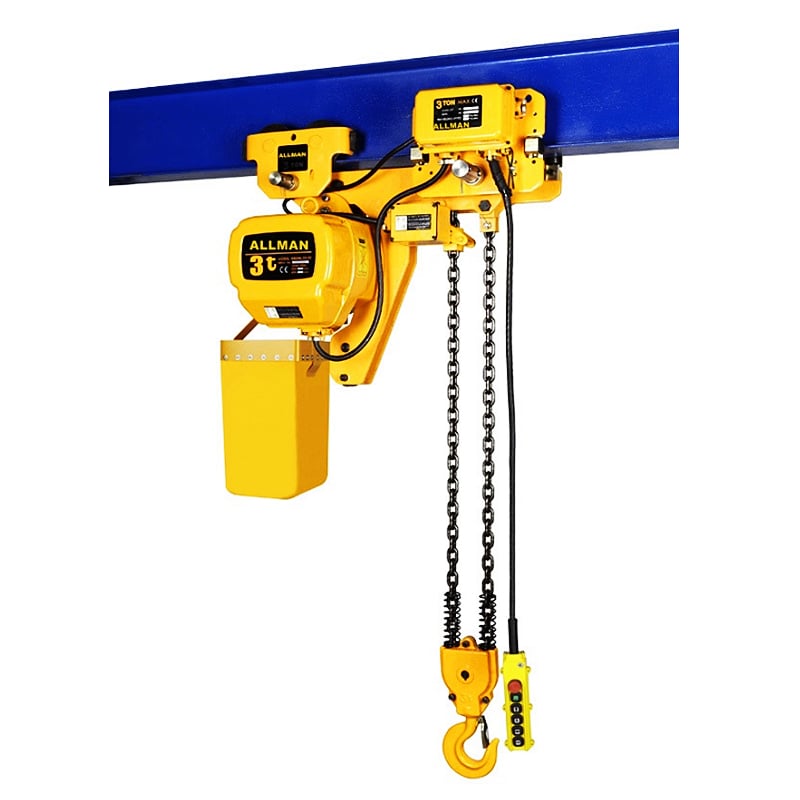

Introducing our 3 ton AMEH Series Low Headroom Type Electric Chain Hoist - designed to meet the needs of industrial and commercial applications. With its low headroom feature, it's perfect for spaces with limited room. Our hoist boasts a powerful electric chain drive that ensures high efficiency and quiet operation. The AMEH Series is also equipped with a smart control system that allows the operator to easily control lifting speed, position, and overload protection. Its sturdy body construction can withstand even the most demanding conditions. Our product guarantees high performance, durability, and safety, making it the ideal choice for any heavy-duty lifting operation.
