NANTONG ALLMAN INDUSTRY CO., LTD is a leading player in the machinery industry, specializing in electric chain hoists, wire rope hoists, electric winches, manual chain hoists, and beam trolleys.
Product name: 2 Ton Electric Chain Hoist With Trolley
Lifting height: as customized
Power Supply: 3 phase/ 1 phase optional
MOQ:1 set
Electric chain hoist features:
electric hoist product structure: the body selects high-strength tensile shell or aluminium shell, small size, light weight, high strength. Standard electric chain hoist with independent gearbox system, sealed gearbox within the secondary coaxial transmission gear mechanism, using a long-life oil bath lubrication system.
Electric hoist powder metallurgy clutch for overload protection device, braking using disc DC magnetic field braking, braking torque, smooth, rapid, low noise.

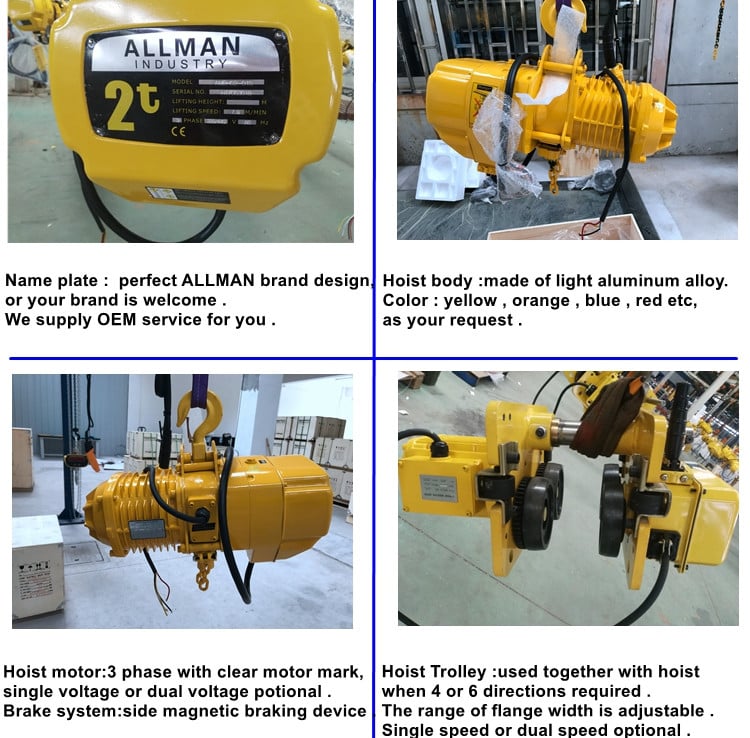

Detailed Information of electric hoists for sale
 |
Shell: The chain hoist is made of aluminium alloy shell, which is solid and lightweight. There are characteristic heat sinks, which dissipate heat quickly and can be used continuously with an efficiency of 40%. The overall airtight structure can be used in chemical plants, electroplating factories and other places.
Side Magnetic Brake: Newly designed magnetic force generator with the characteristic of producing magnetism. It can brake at the same time when the power is cut off to ensure the safety of braking when lifting weight.
Limit switch: There are switch devices for lifting up and down to make automatic stop and prevent the chain from exceeding to ensure safety. Chain: The chain hoist adopts imported FEC80 heating treatment alloy steel chain. It is safe to use in rain, sea water, chemicals and other bad conditions.
Hook: Hot forged, not easy to break. The lower hook can be rotated 360° with a safety tongue to ensure safe operation.
Support bracket: The lifting weight support bracket is made of two pieces of steel plate combination, very strong.
Transformer: 24V/36V transformer. In case of power leakage during operation, it can prevent accidents and ensure safe use when it rains.
Electromagnetic contactor: High efficiency electromagnetic contactor, can be used at high frequency without any problem.
Reverse-phase protection device: special wire device, when the power supply is wired wrongly, the control circuit can not act.
Push-button switch: the chain hoist uses waterproof push-button switch, which is lightweight and durable.
 |
Technical Dimension of electric hoists for sale
| Model | AMEH | ||||||||
| 0.5-01S | 01-01S | 02-01S | 03-01S | 03-02S | 05-02S | 7.5-03S | 10-04S |
15-06 S |
|
|
Load (Ton) |
0.5 | 1 | 2 | 3 | 3 | 5 | 7.5 | 10 | 15 |
|
Speed (m/min) |
7.2 | 6.6 | 6.6 | 5.4 | 4.4 | 2.7 | 1.8 | 2.7 | 1.8 |
|
Power (kw) |
0.8 | 1.5 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0×2 | 3.0×2 |
|
Rotation Speed (r/min) |
1440 | ||||||||
|
Power Supply |
3P 220V/380V/440V | ||||||||
|
Contorl Voltage |
24V/36V/48V | ||||||||
|
No.of Chain |
1 | 1 | 1 | 1 | 2 | 2 | 3 | 4 | 6 |

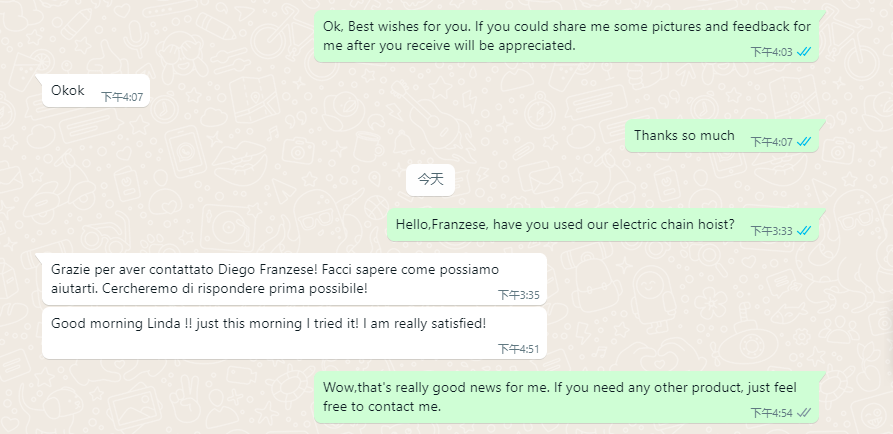

Good comments of our Electric Chain Hoist for sell, if you need 1 ton electric chain hoist,2 ton electric chain hoist,motorized hoists,3 ton electric chain hoist,5 ton electric chain hoist,please contact us,we will provide you with the best price, product and also service.
