• 1 Ton Heavy Duty Electric Winch

    • 1 Ton Heavy Duty Electric Winch

    NANTONG ALLMAN INDUSTRY CO., LTD is a leading player in the machinery industry, specializing in electric chain hoists, wire rope hoists, electric winches, manual chain hoists, and beam trolleys.

    Load Capacity: 1Ton

    Wire Rope Length: 0～150M

    Rope Diameter: 11mm

    Working Grade: M5

    Working Speed: 13~19 m/min

    Motor Power: 3.0Kw

    Power Supply: 220V / 380V / 440V 50/60HZ 3Ph

    ALLMAN 1 Ton Electric Winch model AMW is one of the heavy duty winches. The winch can is mostly used for material lifting and large hoisting projects, suitable for construction, water conservancy projects, forestry, mines, docks and other occasions.

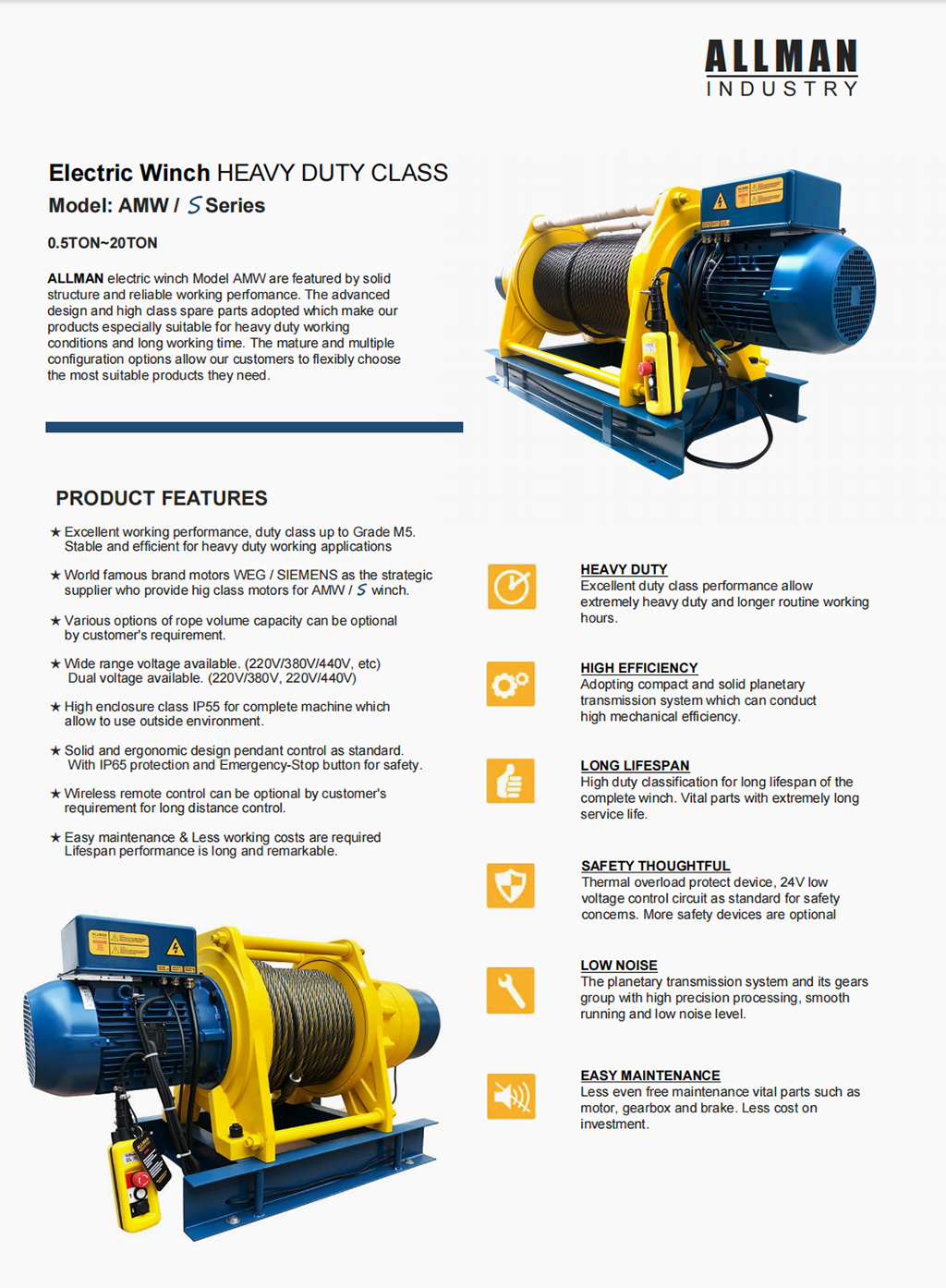

    Features of the AMW Winch:

    1 Ton Heavy Duty Electric Winch

    • High working grade: M5 ( The highest one in China)
    • Single phase and Three phase are both available
    • Use world famous motor WEG motor or Siemens Motor accordong to customer's needs
    • Wireless remote control can be optional by customer's requirement for long distance control
    • Lifespan performance is long and remarkable
    • High enclosure class IP55 for complete winch which allow to use outside environment

    Technical Date of the AMW Electric Winch:

    Model

    Rated capacity(Ton)

    Rope Length(m)

    Working Speed(m/min)

    Motor Power(Kw/hp)

    Rope Diameter(mm)

    Power Supply

    (volt.freq.ph)

    AMW-S 500-M

    0.5

    ≦80

    9~14

    1.5KW(2.0hp)

    9

    220V/380V/440V, 50/60Hz /3Ph

    AMW-S 500-

    L

    0.5

    81~105

    9~14

    1.5KW(2.0hp)

    9

    AMW-S 750-M

    0.75

    ≦80

    9~14

    2.2KW(3.0hp)

    10

    AMW-S 750-M

    0.75

    81~150

    9~14

    2.2KW(3.0hp)

    10

    AMW-S 1000-M

    1

    ≦80

    13～19

    3.0KW(4.1hp)

    11

    AWM-S 1000-L

    1

    81~150

    13～19

    3.0KW(4.1hp)

    11

    AMW-S 1600-M

    1.6

    ≦80

    13～19

    4.0KW(5.4hp)

    13

    AMW-S 1600-L

    1.6

    81~150

    13～19

    4.0KW(5.4hp)

    13

    AMW-S

    2200-M

    2.2

    ≦100

    8～14

    5.5KW(7.5hp)

    16

    AMW-S 2200-L

    2.2

    101～170

    8～14

    5.5KW(7.5hp)

    16

    AMW-S 2200-XL

    2.2

    171～250

    8～14

    5.5KW(7.5hp)

    16

    AMW-S 3200-M

    3.2

    ≦100

    8～14

    7.5KW(10.2hp)

    18

    AMW-S 3200-L

    3.2

    101～200

    8～14

    7.5KW(10.2hp)

    18

    AMW-S 3600-M

    3.6

    ≦100

    8～14

    9.2KW(12.5hp)

    18

    AMW-S 3600-L

    3.6

    101～200

    8～14

    9.2KW(12.5hp)

    18

    AMW-S 5000-M

    5

    ≦200

    9~13

    15KW(20.4hp)

    22

    AMW-S 5000-L

    5

    201~350

    9~13

    15KW(20.4hp)

    22

    AMW-S 8000-M

    8

    ≦170

    9~13

    18.5KW(25.2hp)

    26

    AMW-S 8000-L

    8

    171~300

    9~13

    18.5KW(25.2hp)

    26

    AMW-S

    10000-M

    10

    ≦250

    10～13

    22Kw(29.9hp)

    30

    AMW- S

    10000-L

    10

    251～430

    10～13

    22Kw(29.9hp)

    30

    AMW-S

    12500-M

    12.5

    ≦250

    10~13

    22Kw(29.9hp)

    30

    AMW-S

    12500-L

    12.5

    251~430

    10~13

    22Kw(29.9hp)

    30

    AMW-S

    16000-M

    16

    ≦350

    8～11

    45Kw(61.2hp)

    38

    AMW-S

    20000-M

    20

    ≦350

    8～11

    45Kw(61.2hp)

    38

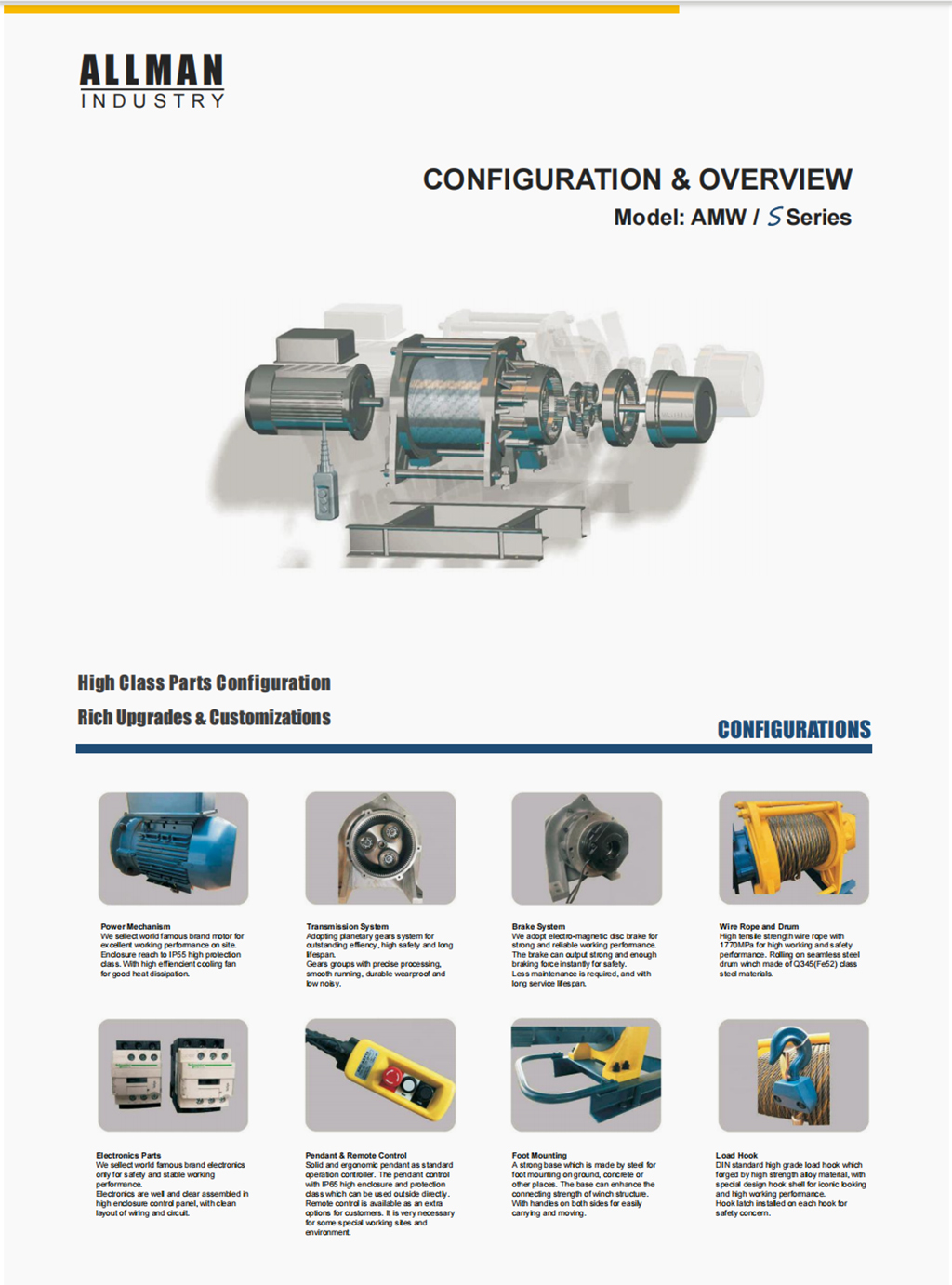

    Spare Parts of AMW Winch:

    1 Ton Heavy Duty Electric Winch

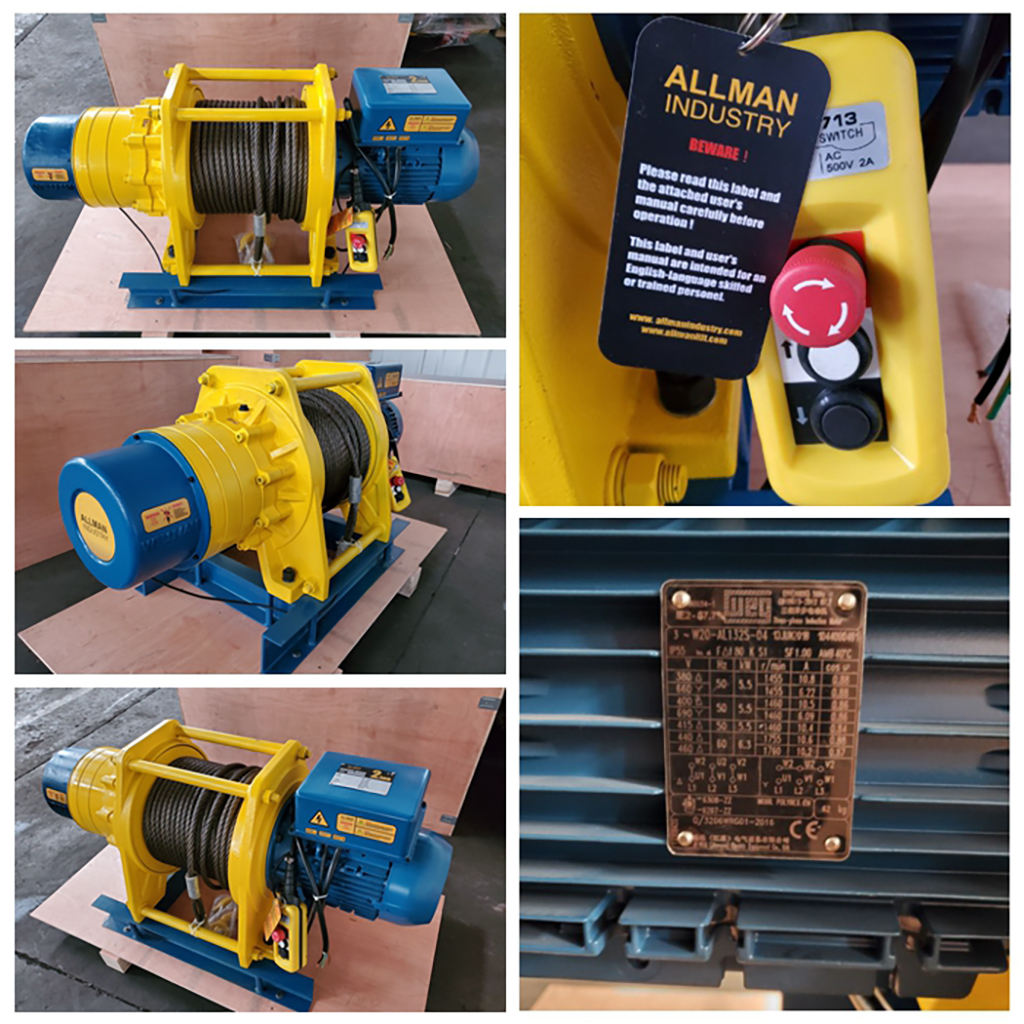

    Finished Pictures of AMW Winch:

    1 Ton Heavy Duty Electric Winch

    Package Method of AMW Winch-Wooden Package

    1 Ton Heavy Duty Electric Winch

    Electric Winch Factory Introduction:

    ALLMAN ( Electric Winch Factory) has evolved itself into a specialist in the field of hoisting and lifting equipment. With over 10 years rich experience, we are capable of delivering an extensive range of material handling equipment and lifting products. Whether it comes to construction, manufacturing, mining, transportation, railway, electric power, wind power, theater, offshore, or ship building, you name it, we provide it.

    Safety, quality and professionalism are the three key words to ALLMAN hoisting and lifting equipment. Safety is one of the main concerns in the world where accidents could be easily encountered. Housing and lifting jobs is no stranger to risks. Safety can only be guaranteed by quality as well as professionalism. Our expertise in hoisting and lifting equipment and our long-acquired experience have helped us to become one of the most professional parties in the field of work.
    With ALLMAN you can rest assured of obtaining the best value for your money. With our efficient and well-controlled process, we safeguard continuity in our product quality. European norms and standards are complied with. We maintain a substantially great stock level that is constantly monitored. This guarantees one of the fastest delivery times among our peers.
    ALLMAN hoisting and lifting equipment is one of the most important and stable players in the market. We are well known to offer products of trustworthy and solid quality at a competitive price. In addition, we have build up an extensive distributor network worldwide over the years. With this network, we ensure fast delivery and best available after sales support to our customers.

    Certification of ALLMAN Electric Winch:

    1 Ton Heavy Duty Electric Winch

    ALLMAN Exhibition：

    1 Ton Heavy Duty Electric Winch

    FAQ:

    1. Q: Can you accept one unit of the winch as MOQ?

    A: Sure, of course.

    2. Q: What is the price for the electric winch?

    A: Since the price of the heavy duty winch is depending on the the capacity, the wire rope length and the quantity. You can wirte the inflrmation in your inquiry. So that i can check the price you as soon as i received your inquiry.

    3. Q: Which is the best shipping port to you?

    A: Shanghai port is the nearest one to us. But if you need us to delivery the goods to other places, we can acept.

    4. Q: Which delivery term you can provide?

    A: We provide FOB， CFR， CIF， DDU and EXW price.

    5. Q: Can you accept Paypal?

    A: Yes, we accept three payment methods： TT， L/C， Paypal.
