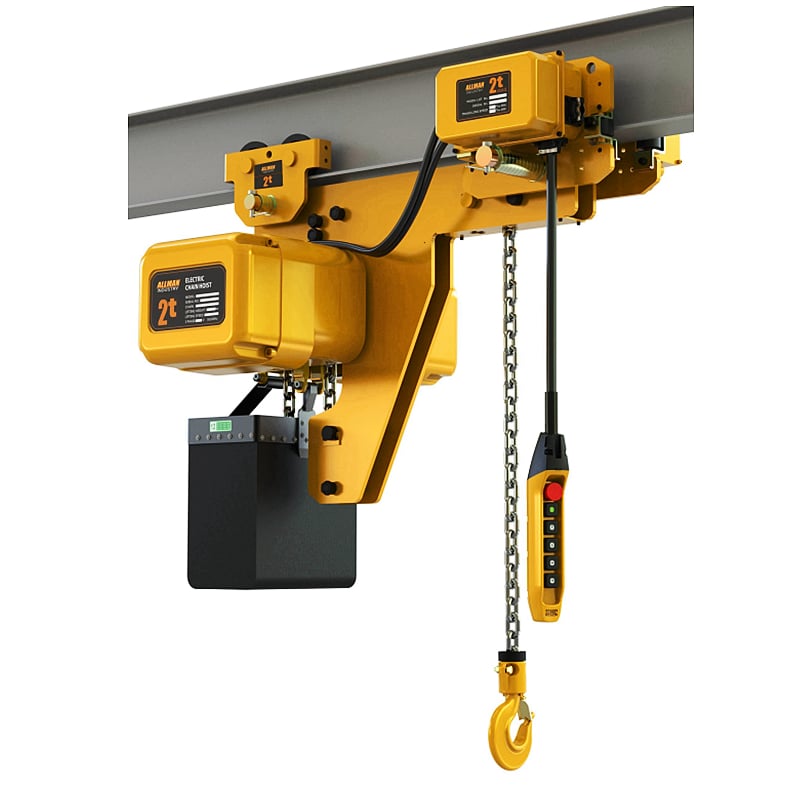

    • 1 ton ER Series Low Headroom Type Electric Chain Hoist

    NANTONG ALLMAN INDUSTRY CO., LTD is a leading player in the machinery industry, specializing in electric chain hoists, wire rope hoists, electric winches, manual chain hoists, and beam trolleys.

    Product Specification

    Model Capacity
    (t)    		 Control
     Voltage    		 Power
    Supply    		 No. of
    Chain Fall    		 Insulation
    Class    		 Lifting Motor
    (Inverter)    		 Travelling Motor
    (Inverter)
    Lifting
    Speed
    (m/min)    		 Motor Power
    (kw)    		 Rotation Speed
    (r/min)    		 Travelling
    Speed
    (m/min)    		 Motor
    Power
    (kw)    		 Rotation
    Speed
    (r/min)
    0.5-01ER 0.5 24V/36V/48V 3P 220V-525V
    50/60Hz    		 1 F 2.1-8.2 0.8 1440 3-11 or 19 0.4 1440
    01-01ER 1 1 1.8-7.2 1.5 0.4
    01-02ER 1 2 1.1-4.1 1.5 0.4
    02-01ER 2 1 1.8-7.2 3.3 0.4
    02-02ER 2 2 0.9-3.6 1.5 0.4
    03-01ER 3 1 1.8-5.6 3.3 0.4
    03-02ER 3 2 1.1-4.5 3.3 0.4
    05-02ER 5 2 0.8-3.3 3.3 0.4

    Product Description

    Our 1 ton ER Series Low Headroom Type Electric Chain Hoist is a top-of-the-line product that combines supreme efficiency, durability, and safety. This electric chain hoist is specifically designed for low headroom applications, making it an ideal solution for spaces with limited vertical clearance. With its advanced technology and sturdy construction, this hoist is capable of handling demanding lifting tasks with ease. Its smooth, precise operations ensure that your work is completed quickly and efficiently, making it perfect for demanding industrial environments. Its user-friendly design, advanced safety features, and reliable performance make it an excellent choice for any business looking for a top-quality hoist. Invest in our 1 ton ER Series Low Headroom Type Electric Chain Hoist and enjoy seamless, efficient, and safe lifting operations.

    Product Features

    • 1 ton load capacity: Can lift objects weighing up to 1 ton.
    • ER Series: Designation for the electric chain hoist model series.
    • Low Headroom Type: Specifically designed to operate in areas with low headroom clearance.
    • Electric-powered: Runs on electricity, eliminating the need for manual labor to lift heavy objects.
    • Expandable core: The hoist's core can be extracted without expansion, making servicing and maintenance easier.

    Application of 1 ton ER Series Low Headroom Type Electric Chain Hoist

    • Effortlessly lift and move heavy loads up to 1 ton.
    • Low headroom design makes it perfect for use in tight spaces.
    • Electrically powered for convenience and ease of use.
    • Chain hoist is durable and built to withstand heavy use.
    • Suitable for use in a variety of industries including construction and manufacturing.
